- Extremely Versatile
- Wet/Dry Set-Up
- Magnetic Start
- Works with Cup Wheels and Polishing Pads
- Movable Arm to get into tight areas
- Adjustable Wheels to control height of machine to accommodate different size cup wheels
- Belt Driven

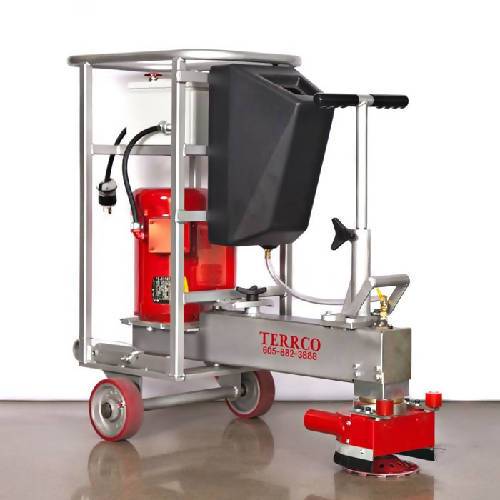

The adjustable roller guard was designed to handle a seven inch cup wheel. The rollers on the guard are adjustable to allow the user to choose how close to a wall to grind. The Terrco Edger equipped with the HBS-146 guard will keep you off your knees all while grinding cleanly right up to a wall.
Horsepower/KW: 3 HP / 2.2 KW
Voltage: 230
Phase: 1
Drive: Manual
Amp Draw: 13.2
Breaker (Amps): 30
Stone Holder RPM: 1725
Sweep of Discs: 7" / (178 mm)
Abrasive Pressure: 45 lbs (20.4 kg)
Width of Machine: 16" (406.4 mm)
Length of Machine: 37.5" (952 mm)
Height of Machine: 37.5" (952 mm)
Net Weight: 230 lbs (104 kg)
Shipping Weight: 325 lbs (147 kg)
Water Tank: 7 Gallon (26.5 L)
Power Cord (14-3): 100 ft (30.5 m)-
This product will be shipped via a freight carrier using LTL shipping methods.
