Terrco Inc.  |  SKU: 3100-3P

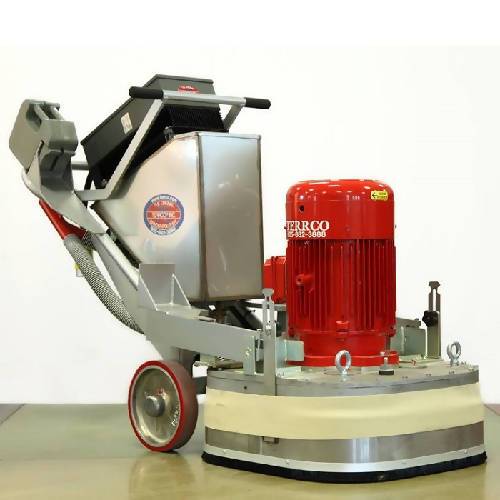

Terrco 3100-3P Concrete Polishing & Grinding Machine

$31,500.00
Shipping calculated at checkout.

  • Optimal for jobs exceeding 10,000 sq. ft.
  • Despite the weight and size the 3100 can be easily maneuvered by a single person
  • Four 42 lb. pocket weights
  • Mild or stainless steel guards
  • Wet/Dry setup
  • Uses plug stone shape, bolt on or speed shift system



Production Rates

  • Mastic removal rate of 1000 sq. ft. per hour
  • Thin-Set removal rates of 1,500 sq. ft. per hour
  • Thin-Mil coatings removal rates of 750 sq. ft. per hour
  • Concrete polishing rates of 2,500 sq. ft. per polishing pad per hour (depending on grit)
  • Rough Terrazzo rates of 1,500 sq. ft. per day



Specs

  • Horsepower/KW:25 38 HP / 18.6 KW
  • Sweep of Discs: 28" (711 mm)
  • Abrasive Pressure: 1090 lbs (494 kg)
  • Width of Machine: 29.5" (749 mm)
  • Length of Machine: 72.25" (1835 mm)
  • Height of Machine: 52" (1321 mm)
  • Net Weight: 1425 lbs (646 kg)
  • Shipping Weight: 1625 lbs (737 kg)
  • Water Tank: 20 Gallon (75.7 L)
  • Power Cord (4-4 - 230 Volt) / 6-4 - 460 Volt: 100 foot (30.5 m)


Electrical Options
230V, 3 Phase, Manual Drive, 60 Amp Draw, 80-100 Amp Breaker, 510 Stone Holder RPM
230V, 3 Phase, Variable Drive, 60 Amp Draw, 80-100 Amp Breaker, 385-600 Stone Holder RPM
460V, 3 Phase, Manual Drive, 30 Amp Draw, 50 Amp Breaker, 510 Stone Holder RPM
460V, 3 Phase, Variable Drive, 30 Amp Draw, 50 Amp Breaker, 385-600 Stone Holder RPM







This product will be shipped via a freight carrier using LTL shipping methods.
