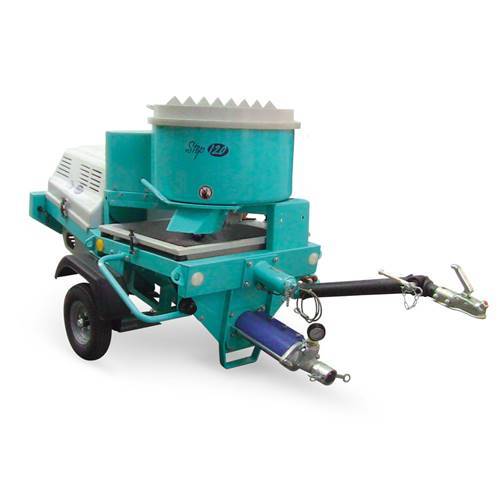

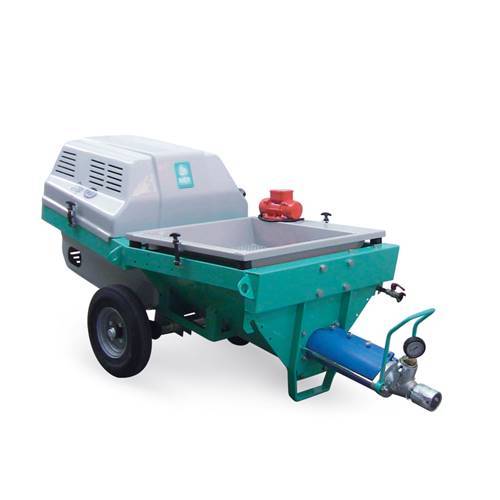

Step-Up 120 - Three Phase Concrete Pump
Step Up to IMER’s Step-Up 120 Series Spray and Grout Pumps
When you need more power to push through stiffer material, or you just need more volume, then look no further than the Step-Up 120 series of pumps. The IMER Step-Up 120 is a towable but very compact sized pump suited for very unique pumping situations and environments. These pumps are extremely versatile. Pump or spray mortars, stuccos, grouts, restoration mortars, underlayments, fireproofing, waterproofings along with many other materials.
Standard Features

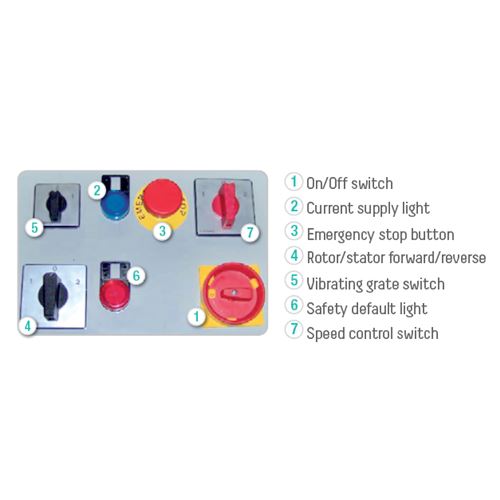

• 2 speed Control panel
• 133’ power cord
• Remote control ready
• 5 hp / 7.5, 2 speed, 3 phase 100% duty cycle motor
• IM25L rotor/stator
• Tow kit
• 33’ of Ø 35mm hose with cam coupling
• 50MM to 35mm material hose reducer
• Grate for premixed materials
• Accessory tool box
Technical Specs
Optional Equipment
• Spin 30 continuous mixer with iDust grate - Part # 1106152
• Step-Up 120 pan mixer, 3 phase - Part # 1107509
• Piston compressor, 3 phase - Part # 1107585
• 2L6 Rotor/stator kit - Part # 1107088
• 60.12 Rotor/stator kit - Part # 1107090
• Vibrating grate - Part # 1107593
• 33’ x 35mm hose - Part # 1107528
• 33’ x 50mm hose - Part # 1107533
• 50mm to 35mm material hose reducer - Part # 1106178
• 120’ Remote control - Part # 1107574
• Included with mixer - Part 1107509
• Non-towing wheel kit - Part # 1107633
• Spray gun step 120 - Part # 1107577
• Shotcrete gun - Part # 1106250
• 5’ overhead wand - Part # 1107549
• 16’ x 35mm male to 25mm male hose - Part # 1107074
• Pintle tow ring - Part # 1107161
Catalog & Applications Chart
Step Up 120 Pump Applications Chart
