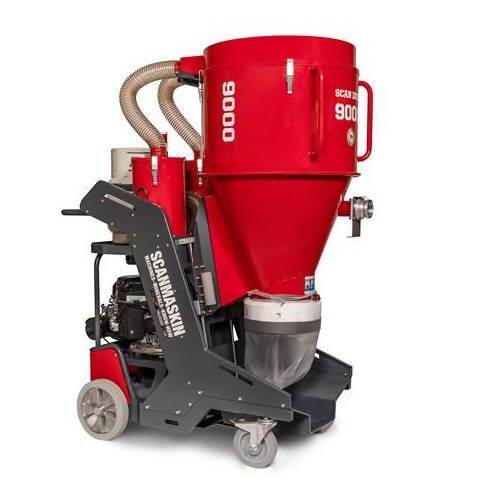

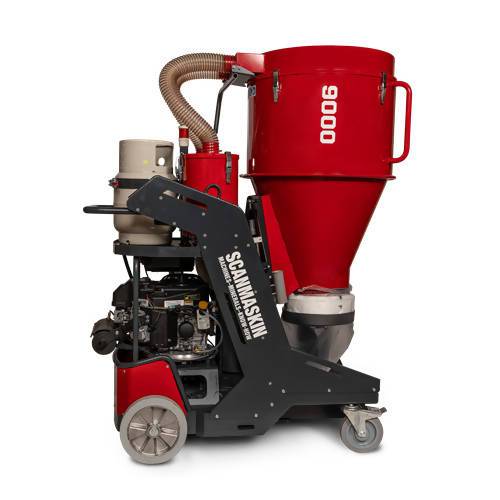

Scanmaskin 9000 Propane Scan Dust World Series Vacuum

The ScanDust 9000 World Series is our largest and most efficient industrial dust collector, featuring increased filter capacity and built-in pre-separators. The unique and patented pre-separator separates the dust into two stages and provides up to 90% pre-separation. This means that you do not need to clean the filters as often, which provides a longer filter life and less interruptions for maintenance compared to traditional industrial dust collectors. Since the pre-separator is built into the machine, it is always included in the workplace, which means no extra equipment that needs to be handled or transported.

The filter area of ​​the ScanDust 9000 World Series is 4.2 m2 (45 sq/ft) and consists of 32 Teflon coated sock filters and 2 Hepa 14 filters. Hepa 14 provides an extremely high filtration rate of 99.995% and takes care of the very smallest and most dangerous particles despite a very high air flow.

As with all machines in the World Series range, extra emphasis has been placed on design, ergonomics and ease of service. The ScanDust 9000 World Series has a height-adjustable cyclone for flexible transport options and is also equipped with solid rear wheels and 200 mm large swivel wheels for easy handling in the workplace.

The World Series design makes service simple, as you can easily access all parts and do not need to disassemble machine to gain access.

The vacuum cleaner is equipped with a filter guard that warns you when you need to clean the filters and a Jet-Pulse cleaning system that easily pulses the filters to keep them clean without having to come in contact with the harmful dust. For simple and dust-free bag replacement, the proven Longopac bag system is incorporated into the SD9000.

Scanmaskin always strives to increase sustainability and environmental consideration in our products and operations. The ScanDust 9000 World series is no exception with steel construction and 95% recyclability.

• Equipment Specifications
• Technical & Safety Data Sheets
• Shipping & Warranty Information

• Motor: Kawasaki FC603
  Motor Power: 18 hp
  Propane Tank: 9 kg / 20 lbs
  Max Airflow: 460 CFM / 782 m3/h
  Max Vacuum: 90 in / 225 mbar
  Hose: 33ft x 3" and 33ft x 2"
  Inlet: 3" camlock
  Primary Filter: 32 teflonated polyester sock filters, 4.2 m2 FT 99.5%
  Micro Filter: Hepa 14, 2 x 3.9 m2 99.995%
  Sound Level: 80-100 dB(A)
  Dimensions: 59" x 29" x 74"
  Height Adjustments: 74" / 70" / 62"
  Weight: 811 lbs
  Frequency: 80 Hz / 60 Hz
  Filter Cleansing: Semi-automatic Jetpuls



•





• This product will be shipped via a freight carrier using LTL shipping methods.

  Warranty: 24 months of 1000 hours, whichever comes first.
