Scanmaskin 32 World Series Remote Controlled Concrete Grinder

$32,900.00
SKU 593250

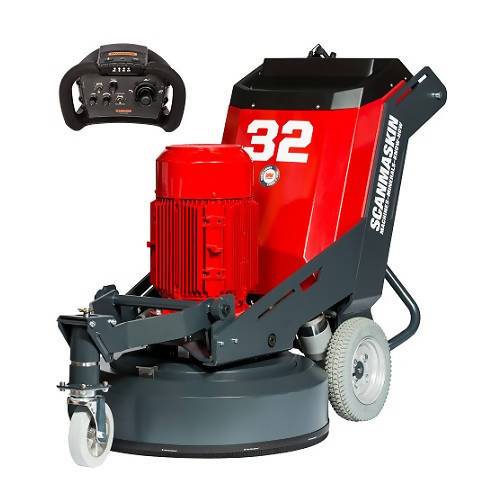

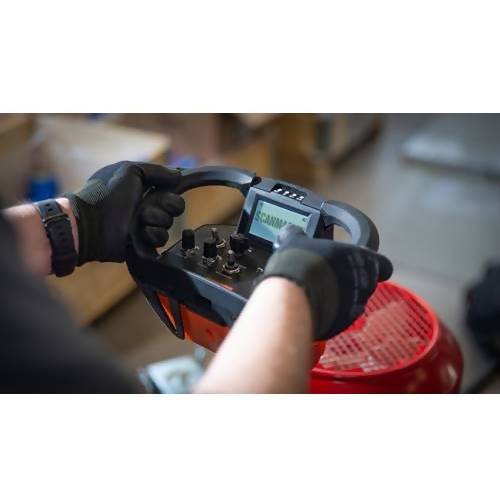

Based on our Scanmaskin 32 World Series (WS), we have created a radio controlled (RC) model. Which offers an opportunity for the operator to easily control the speed of the grinding wheels, the drive wheels, and it offers ergonomic work for the user. It contributes to a minimal load and no vibrations for the operator. Through the “joystick” on the radio control the operator is allowed to control with a high precision in the direction and speed the operator wishes. There is also the possibility to put the machine in a selected speed forward to keep a steady speed during the grinding work.

Scanmaskin 32 RC WS is also equipped with a display, which contributes to the operator being able to follow in real time how the tools are worn and their lifetime.

The machine features cast alloy components along with a floating shroud, designed for years of durability and dust free operation. Scanmaskin 32 RC WS is equipped with a new tool head for better balance and tool support. The machine also has a new electrical cabinet with an improved cooling system. The cooling system is sealed and protects the electrical components against heat and dust. The wheels of Scanmaskin 32 RC WS are 370 mm and can be quickly released, which makes it easy for the operator to operate the machine manually.



  • Voltage: 200-240 V 3-phase / 380-480 V 3-phase
    Motor Power: 11kW / 15kW (15 hp / 20 hp)
    Current: 50 Amp / 32 Amp
    Frequency: 50-60 Hz
    Grinding Disc Speed: 200-825 rpm
    Grinding Disc: 3 x 280 mm / 3 x 11"
    Grinding Width: 785mm / 32"
    Weight: 610 kg / 1345 lbs
    Water Tank: 20 L / 5.3 US gal
    Other: CE Marking

  •
