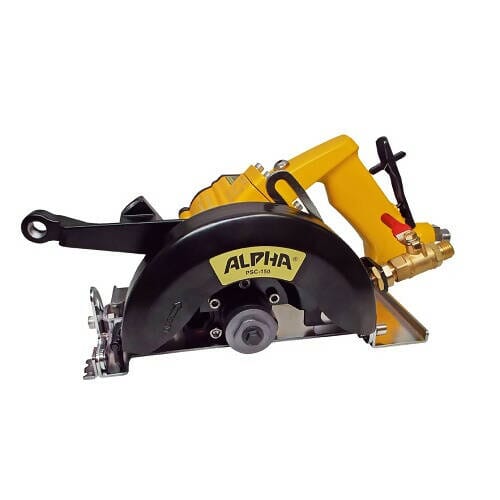

PSC-150 Pneumatic Stone Cutter - 6"

Alpha® is excited to introduce a new industrial quality pneumatic stone cutter, called the PSC-150, which is equipped with a 2 hp motor, with a speed governor in the motor that regulates the air consumption according to the torque needed for the application. This regulation includes producing enough torque to cut 1-1/4” (3cm) stone slabs in one pass. In addition, Alpha® recognized the need for an industrial quality portable stone cutter that is capable of miter cutting of 1-1/4” (3cm) materials with ease, so that any stone fabricator can use it when miter cuts are required, without time-consuming setup. Since it is a pneumatic powered motor, you can save the repair and maintenance costs of electric stone cutters when sink-hole cutting and groove-cutting for rodding applications.

Alpha® offers a carriage that retrofits on the Alpha® Guide Rail System to support the application of making precise miter cuts for the perfect lamination. The PSC-150 offers kink-free water and air hoses to improve the maneuverability of the stone cutter. The flexibility of the hoses helps reduce operator fatigue and improves the operation. To ensure a long maintenance interval, we also recommend using the manifold system that comes with a regulator and filter to catch the debris and moisture delivered by compressed air.

The Alpha® PSC-150 comes with an Eclipse II 6” blade which is the recommended turbo blade for granite and engineered stone. It can utilize a variety of consumables including the Alpha® Katana 6” for porcelain panels and slabs, Hot-Rod 4” for 1/4” steel rods and 1/8” fiber glass rods. For marble applications, a Libero 5” blade is recommended since most marble slabs are 3/4” (2cm) thick or less.

Features & Benefits

• 2 HP Pneumatic Powered Motor with Speed Control Governor
• Capable of Miter Cutting 1-1/4" (3cm) Material With Ease
• Kink-Free Water and Air Hoses for Easy Maneuverability and Reducing Operator Fatigue
• Great For Sink-Hole Cutting, Groove Cutting and Rodding Applications
• 2,000 Hour Duty Cycle
• Comes With an Eclipse II 6” Blade and a bottle of Rust Inhibitor Oil
• Can Be Used Wet or Dry
• One Year Tool Warranty*

Specs

• Model: PSC-150
• Air Pressure: 90 PSI (6.2 Bar)
• Air Consumption Min: 929 l/min 32 CFM / 1HP*
• Air Consumption Max: 48 CFM / 2HP
• No Load Speed: 8,500 RPM
• Air Inlet: 3/8” NPSM
• Water Inlet: 1/4” BSPP
• Arbor: 7/8” (22mm)
• Max. HP: 2.0 HP
• Cutting Disc Diameter: 6" (150mm)
• Weight: 10.3 lbs (4.6 kgs)

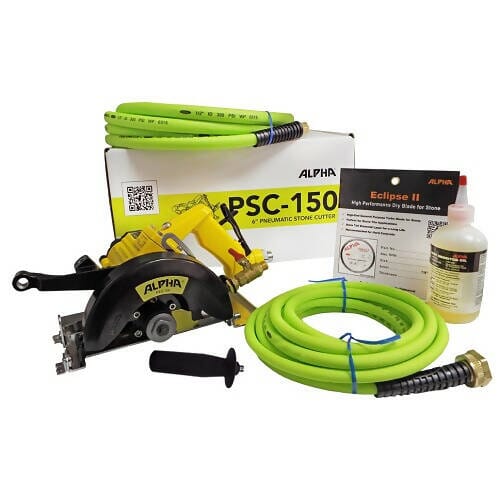

Equipment Included

• Flanges
• Bolts (M6X30 Left) / (M6x20 Left)
• Side Handle
• Combination Wrench (9mm)
• Hex Wrench (5mm
• Open End Spanner Wrench (22mm)
• Air Hose (15ft / 4.5m)
• Water Hose (15ft / 4.5m)
• Rust Inhibitor Oil (8oz / 237ml) (AIR-008)
• Alpha® Eclipse II 6" Blade (DEE006)
• Muffler
• Reduced Flow Air Inlet Fitting (3001-0084)
• Hook & Loop Strap
