PolyPoxy 5114 Laminating Epoxy
PolyPoxy® 5114 is a gray, filled laminating epoxy for high-heat applications up to 300°F (for use above 150°F, post cure is required). This product is well-suited for constructing vacuum form tools, lay-up and compression molds, RTM and RIM molds, and matched dies. For compatible surface coat epoxy options, view our Surface Coat product line.
PolyPoxy® 5114 has a pot life of 60 minutes, a demold time of 24 hours, and cures to a Shore D90 hardness.
FOR INDUSTRIAL/PROFESSIONAL USE ONLY.
TECHNICAL SPECIFICATIONS
- Mix Ratio by Weight: 100A:13B
- Mix Ratio by Volume: 100A:18B
- Shore Hardness: D90
- Pot Life: 60 min.
- Demold Time: 24 hr.
- Cured Color: Gray
- Mixed Viscosity: 3,600 cP
- Specific Gravity: 1.31
- Specific Volume: 21.2 in³/lb
- Heat Deflection Temp.: 295°F
- Notes: BEFORE USE: Thoroughly read Safety Data Sheets, Technical Bulletin, and product labels. WARNING: THE EPOXY CURE REACTION IS VERY EXOTHERMIC - IMPROPER USE OF LAMINATING EPOXY CAN CAUSE WARPING AND EVEN A FIRE.
Kit Components
| PolyPoxy® 5114 | Components |

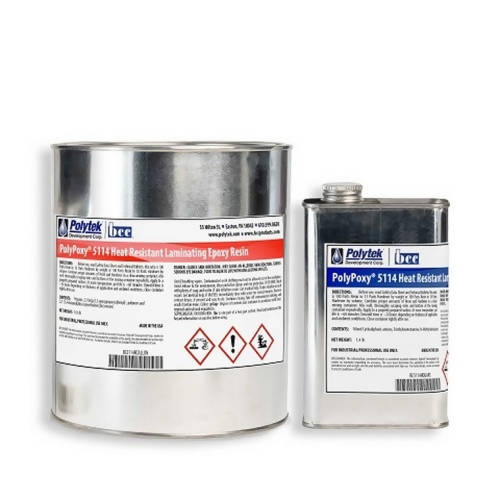

| 12-lb kit includes | 10.6 lb of PolyPoxy 5114 Resin (~1 gallon) 1.4 lb of PolyPoxy 5114 Hardener (~1 quart) |

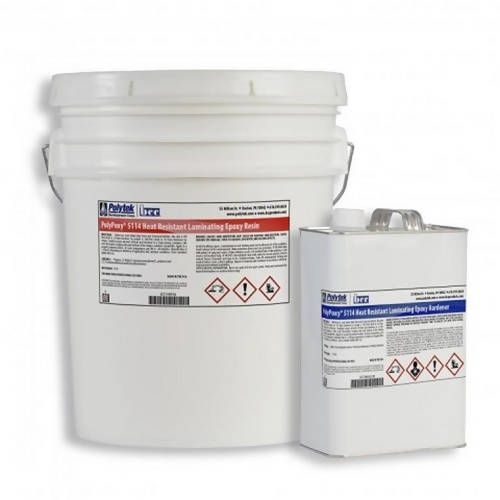

| 60-lb kit includes | 53 lb of PolyPoxy 5114 Resin (~5 gallons) 7 lb of PolyPoxy 5114 Hardener (~1 gallon) |
