Polytek Development Corp  |  SKU: R5U16

PolyFoam R-5 Casting Foam

$141.00
Shipping calculated at checkout.

PolyFoam R-5 is a two-part, rigid polyurethane casting foam. This self-skinning foam has a free-rise density of 5 lb/ft³, but should be cast at a density of 8 to 20 lb/ft³ to achieve good surface detail and mold fill. Generally, PolyFoam products should be cast in TinSil® or PlatSil® silicone molds.

Barrier coats (e.g., a fast-drying primer paint) can be applied to silicone molds before casting foam in order to produce pre-primed parts right out of the mold. These foams can also be poured into Poly 74 & 75-Series polyurethane rubber molds that have been coated with PolyCoat Sealer & Release Agent.

FOR INDUSTRIAL/PROFESSIONAL USE ONLY.

TECHNICAL SPECIFICATIONS
  • Mix Ratio by Volume: 1A:1B
  • Mix Ratio by Weight: 1A:1B
  • Mixed Viscosity: 1,100 cP
  • Cream Time: 45 sec.
  • Rise Time: 2 min.
  • Tack-Free Time: 3 min.
  • Free-Rise Density: 5 lb/ft³
  • Molded Density Range: 8-20 lb/ft³
  • Demold Time: 10-15 min.



Kit Components
PolyFoam R-5 Components

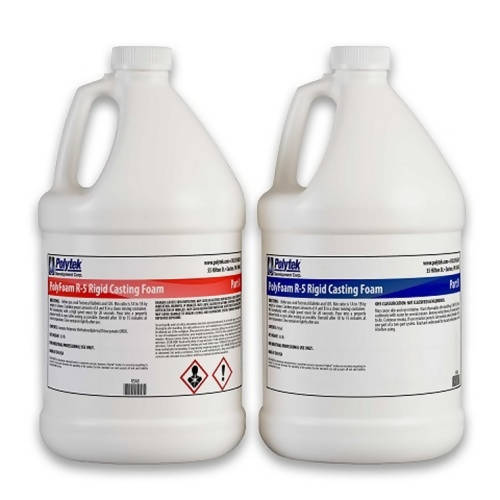

16-lb kit includes 8 lb of PolyFoam R-5 Part A (~1 gallon)
8 lb of PolyFoam R-5 Part B (~1 gallon)

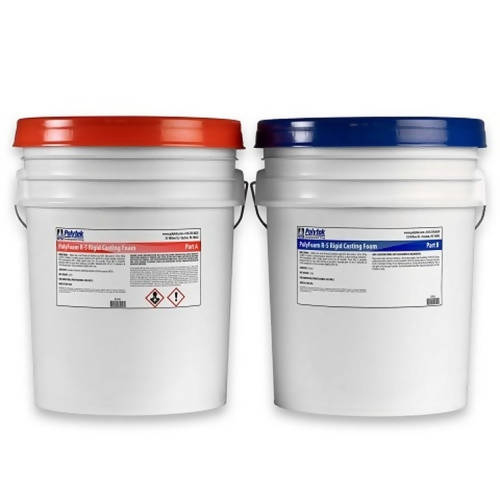

80-lb kit includes 40 lb of PolyFoam R-5 Part A (~5 gallons)
40 lb of PolyFoam R-5 Part B (~5 gallons)
