PolyDowel – Engineered Composite Plate Dowel Only - Case of 100

Equivalent joint performance to steel, noncorrosive without stainless steel, at only 20% of the weight.

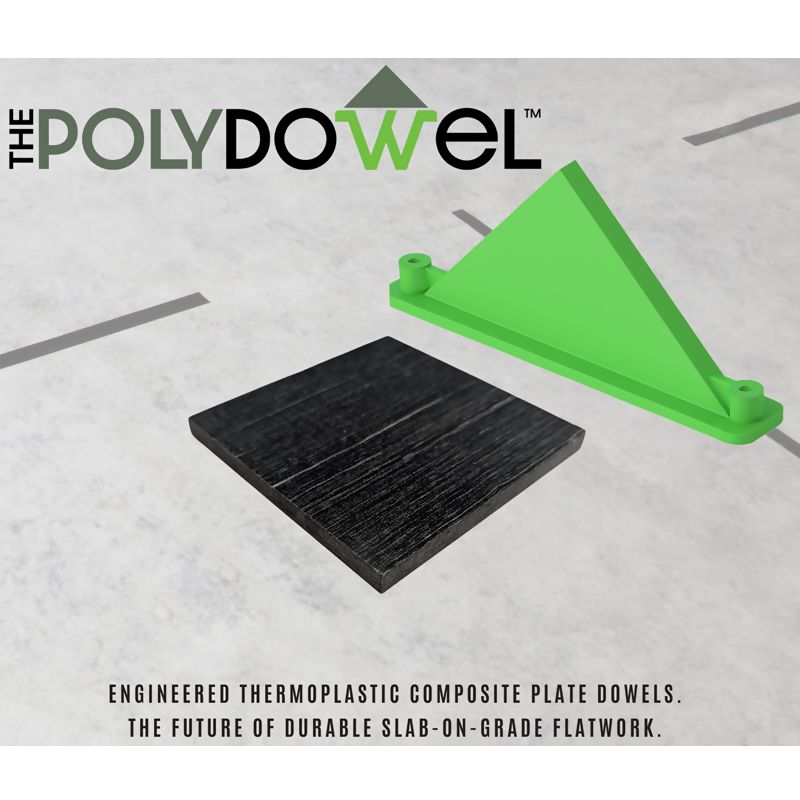

PolyDowel™ 3/8 in is a CFRTP tapered plate dowel qualified as a direct structural replacement for 3/8 in steel tapered plate dowels in concrete slabs 5–8 in thick. Full-scale joint testing demonstrates equivalent load-transfer performance and service-range stiffness at approximately 20% of the weight, with no corrosion risk.

Completed with an industry-standard pocket former available through ReForm. A reusable cavity former system is in development.

Made in the USA.

Why PolyDowel™:

• Direct replacement for steel: Qualified to deliver equivalent joint performance using standard tapered plate dowel practice.
• Approximately 80% lighter than steel: Lower freight cost, safer handling, and faster placement.
• Noncorrosive: Will not rust, seize, expand, or damage surrounding concrete over time.
• Preserves long-term joint performance: Maintains intended joint movement without corrosion-driven locking or stiffness changes.
• Nonmetallic and nonconductive: Suitable for medical facilities, data centers, embedded sensors, and electrically sensitive environments.
• Sustainable by design: Reduces steel use while supporting long service life and recyclable material pathways.

Installation

PolyDowel™ installs using standard 3/8" tapered plate dowel installation methods and aligns with common slab on grade design practice.

• Paired with industry-standard 3/8" tapered plate dowel pocket formers.
• Typical placement follows ACI 360 guidance.
• Recommended slab depth: 5" to 8"
• Typical spacing: 18 in center to center

Detailed dimensions and placement guidance are provided in the PolyDowel™ Product Data Sheet.

Sold in cases of 100.

Looking for larger quantities? Call 541-341-3390 for details.
