Imer USA  |  SKU: 1106344

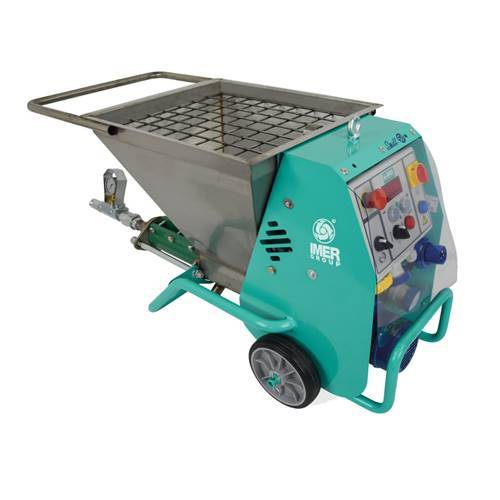

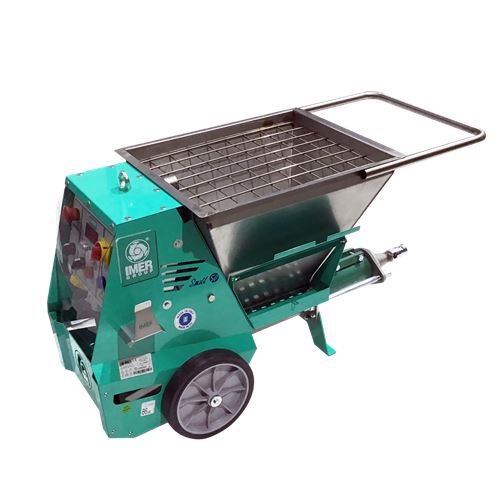

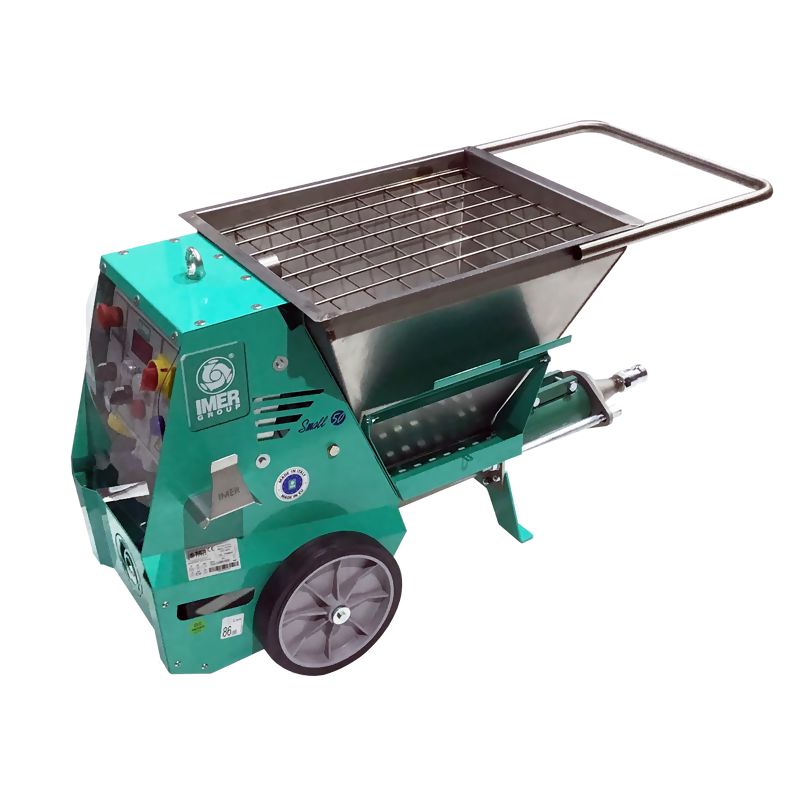

Mighty Small 50 EVO - Concrete Pump

The Mighty Small 50 offers unparalleled portability and versatility as a pump and spray machine. With a variety of optional accessories available, this pump can be tailored to meet the specific needs of any application. Whether it's delivering grout to forms, repairing a bridge deck, spraying fireproofing on a tall building, or filling blocks with grout, our pumps have a proven track record of success. Trust the Mighty Small 50 to provide the solution for any challenging pumping task.

$7,999.00
Shipping calculated at checkout.

The Mighty Small 50 EVO Performs on the Most Challenging Job Sites Across America

The Mighty Small 50 EVO is an easily portable multi-purpose pump and spray machine. You may configure the pump with many different accessories depending on the required application. Whether it is pumping grout into forms, on a bridge deck repair project, spraying fireproofing on a high-rise. EVO Model # 1106344 110V/60Hz, 1.75 HP

Standard Features

  • Rotor and stator D8 1.5
  • Stainless steel hopper

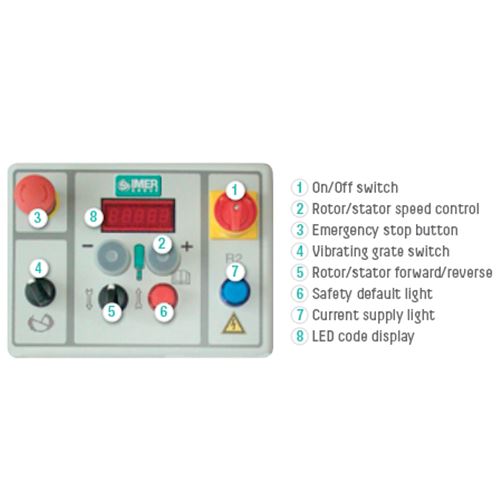

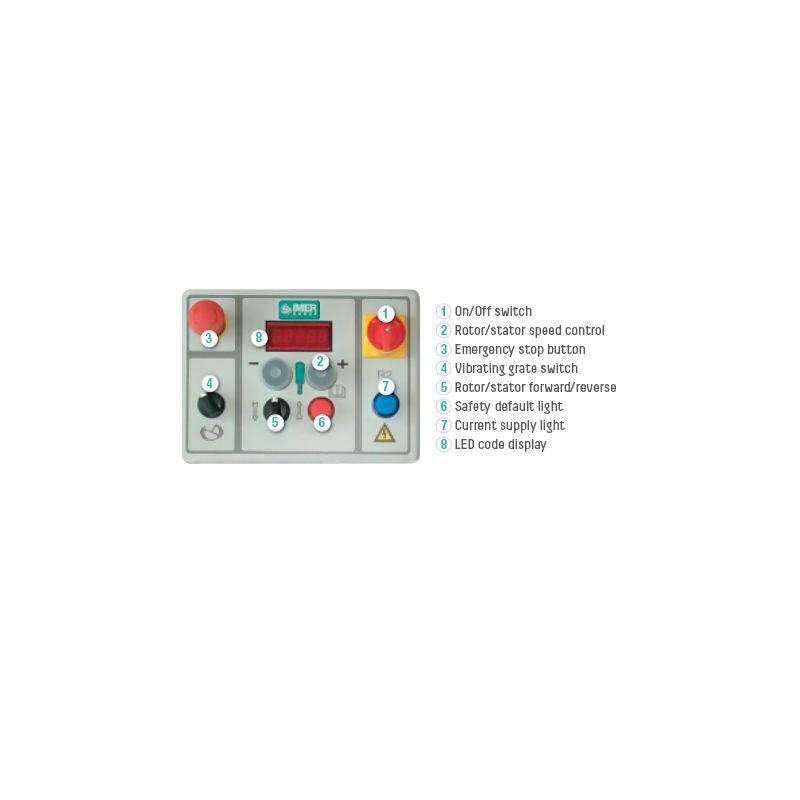

  • Inverter driven control panel
  • Electric remote control cable
  • Pressure gauge for material pressure
  • Accessory toolbox

Technical Specs

  • Model - 1106344
  • Power - 120V
  • Pump Motor - 1.75 hp
  • Max Aggregate Size - 1/4 in
  • Hopper Capacity (CF) - 1.75 cu. ft.
  • Loading Height - 25.5 in
  • Dimension (L/W/H) - 20.5" x 44" x 25.5"
  • Weight - 90lbs
  • Sound Pressure Level- <74 dB(A)

Optional Equipment

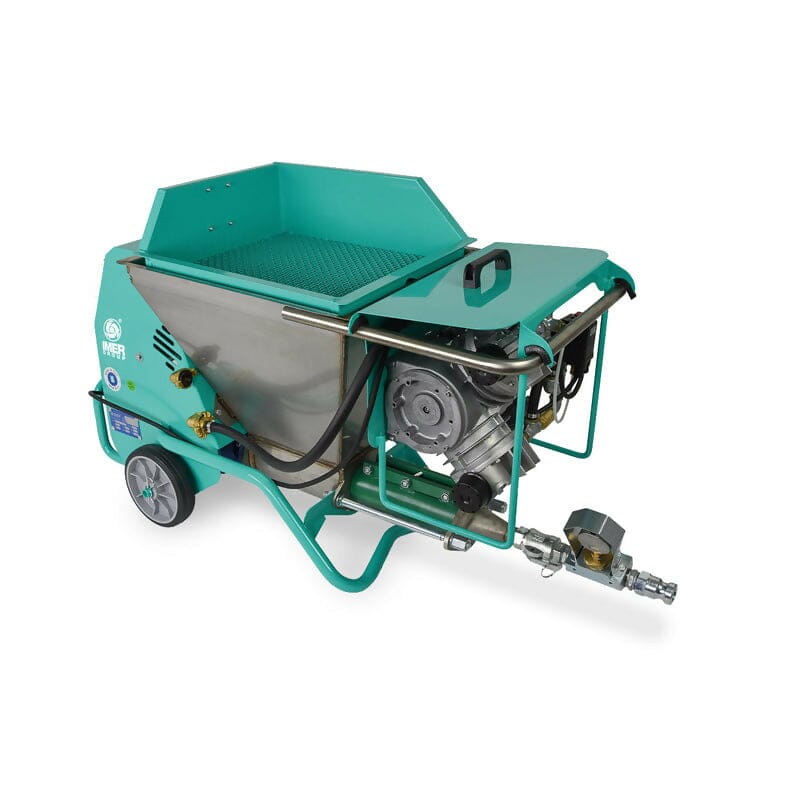

  • Dual diaphragm compressor - Part # 1107546
  • Mortar, stucco and fireproofing gun kit - Part # 1107005
  • Paint and fine coatings gun kit - Part # 1107010
  • Grout injection kit - Part # 1107006
  • Tuck pointing gunkit - Part # 1107504
  • 50' x 25m material hose - Part #1107525
  • 33' x 25mm material hose - Part #1107526
  • 16' x 25mm material hose - Part #1107527
  • 5’ overhead wand - Part #1107549
  • Vibrating hopper for tuckpointing - Part #1107015​
  • Vibrating screen for bulk sand mixes - Part # 1107548​
  • Pipe hook for block, form and door jamb filling - Part #1107570
  • D5 - 2.5 Rotor - Part #1107085
  • D5 - 2.5 Stator - Part #1107084
  • Small 50 Plus Airless Spray Kit - Part #1107669
