Concrete Polishing HQ  |  SKU: V20E230

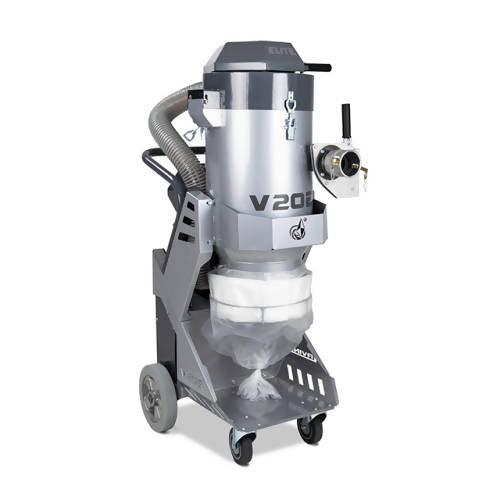

Lavina Vacuum V20E - 1ph x 230V50 / 60Hz

$3,990.00
Shipping calculated at checkout.

Lavina® V20E dust collector is designed for sucking and separating dry, non-combustible and non-explosion dust. Dust laden air is sucked through at high speed via the suction hose. The air is slowed down by the cyclone and coarse dust particles are separated out, partly by centrifugal force and partly by gravity.

Air and finer particles then pass through filter system from the primary filter and the HEPA filter where the dust is separated. The machine is designed to clean the primary filter by impulse reverse air flow. The separated dust accumulates in the cyclone until you close the valve situated on the vacuum’s hood to discharge the dust from the body or the machine is switched off. Either way, the dust drops through the bottom flap into the plastic bag.

Also available in 1 ph x 115V50 / 60 Hz
Technical Data
  • Power: 2.4 kW
  • Horsepower: 3.3HP
  • Amps: 13 Amps
  • Filter Type: Conical
  • Filter Surface: 32 ft2
  • Filter Cleaning: Manual
  • HEPA Filter Area: 21.5 ft2
  • Longopac: Yes
  • Main Hose: 50 mm x 7.5 mm (2 in x 24 ft)
  • Hose for Wand: 50 mm x 6.6 m
  • Motors: 2 Bypass Motors
  • Airflow (max): 257 CFM
  • Vacuum Max 0.22 bar / 88 inch H20
  • Dimensions: 32.7 x 23 x 54.5 in
  • Weight: 176 lbs

Lavina Vacuum V20E - 1ph x 230V50 / 60Hz Concrete Polishing HQ
Concrete Polishing HQ

Lavina Vacuum V20E - 1ph x 230V50 / 60Hz

$3,990.00
Lavina® V20E dust collector is designed for sucking and separating dry, non-combustible and non-explosion dust. Dust laden air is sucked through at high speed via the suction hose. The air is slowed down by the cyclone and coarse dust particles are separated out, partly by centrifugal force and partly by gravity.

Air and finer particles then pass through filter system from the primary filter and the HEPA filter where the dust is separated. The machine is designed to clean the primary filter by impulse reverse air flow. The separated dust accumulates in the cyclone until you close the valve situated on the vacuum’s hood to discharge the dust from the body or the machine is switched off. Either way, the dust drops through the bottom flap into the plastic bag.

Also available in 1 ph x 115V50 / 60 Hz
Technical Data
