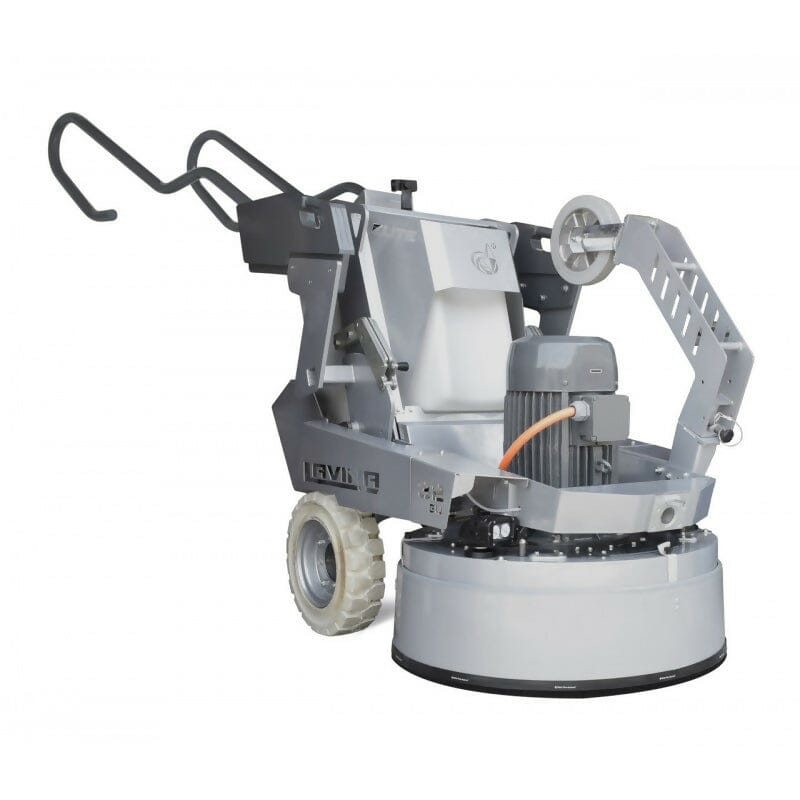

Lavina® 32 Elite Planetary Grinding and Polishing Machine
The redesigned frame of the Elite 32" grinder delivers superior maneuverability and easy tool changes
- The redesigned frame of the Elite 32" grinder delivers superior maneuverability and easy tool changes.
- Dust-proof planetary drive protects internal components from dust and moisture, which reduces maintenance and increases service life.
- New tool security lock on all Elite grinders for safer tool attachment. Please note that Elite models do not come with any foam plates, and we can not supply those.
- The heads of all 32" Elite grinders (electric and propane) have counter-clockwise / left rotation. Use the blue PCDs and Carbide Scrapers.
- New Dust Suppression Fine Misting System with high pressure spray nozzles. Small water droplets effectively suppress and remove breathable fugitive dust particles from 0.1 to 1000 microns. In addition, water can be delivered under the machine at the same time for optimal tool performance. Upgraded water pump.
- Easy-to-use integrated weights with 4 positions. With the weights down, you increase the grinding head pressure, and you can grind more aggressively.
- Improved dust collection efficiency. Adjustable skirt with a flexible brush for better dust containment. Also, the vacuum hose connection is now closer to the dust source, and utilizes a metal camlock attachment.
- Added protection on 3 phase, 220 V electric models to prevent machine damage if plugged into high voltage.
- New adjustable handle bar with multiple handle positions for more convenient operation and transportation. Make sure the handle position is locked when moving or using the machine.
- Two LED lights for monitoring the floor. A detachable LED light (with a magnet) on the base in the front improves visibility, and a second LED light attached in the back of the machine near the floor helps monitor the scratch pattern.
- Convenient integrated lift points for moving the machine with a forklift.
- Charging phone station with dual USB 2.0 ports, 3.15 Amps for faster charging with a shutoff when charge is complete
- Durable stainless steel cup holder.
Horsepower: 20 HP / 15 KW
Voltage (50/60 Hz): 3ph x 200-240V OR 3ph x 380/480V,32Amp
Amperage (max): 60 Amp
Dedicated Breaker Requirement: 60 Amp
Generator Recommendation: 45 KW
Weight of Machine: 1455 lbs / 660 kg
Grinding Pressure Weights Pos. 1: 540 lbs / 245 kg
Grinding Pressure Weights Pos. 2: 652 lbs / 296 kg
Grinding Pressure Weights Pos. 3: 750 lbs / 340 kg
Grinding Pressure Weights Pos. 4: 870 lbs / 395 kg
Attachment Speed: 300-1000 rpm
Working Width: 32 in / 814 mm
Tool Holder Diameter: 3 x 9 in / 3 x 225 mm
Vacuum Hose Port: Camlock E300
Water feeding (with pump): Peripheral & Front Mist
Water tank capacity: 12 gal / 46 L
Cable Length: 57 ft. / 17.4 m
Machine Size: 100 x 34 x 52 in / 254 x 86 x 132 cm
Crate Size: 63 x 37 x 63 in / 160 x 95 x 160 cm
This product will be shipped via a freight carrier using LTL shipping methods.
