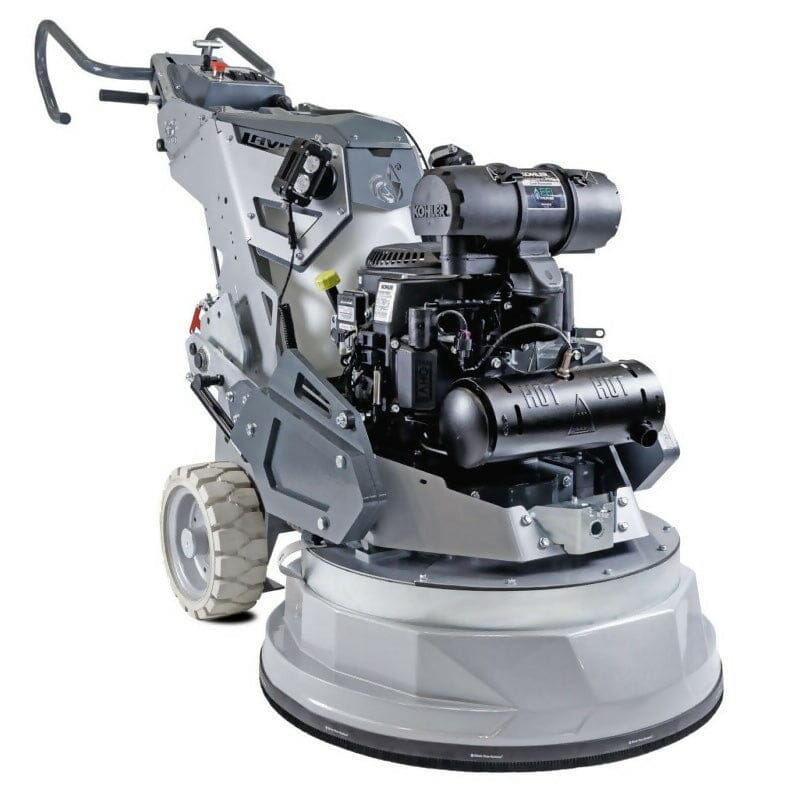

Lavina® L30GKS7 Grinding and Polishing Machine with KOHLER PCV740 (24 hp) Engine

The LavinaL 30GKS7 has a completely new design and features that make contractors’ work easier and more efficient than ever.

Always use VAPOR tanks only. Do not fill over 80%, as this can cause freezing and pressure regulator damage. When propane equipment is used indoors, proper air ventilation with access to FRESH AIR and proper equipment maintenance (oil and filter changes, etc) are of critical importance for operator’s safety. Operators should always carry CO monitor or badge.

New Sealed & Dust-Proof Grinding Head

• Longer service life and less maintenance.
• Completely redesigned chain-driven planetary drive
• New stronger timing belt
• Upgraded shafts, seals and bearings
• New lighter timing pulleys for better power transmission
•  New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance

New Frame Design - Better Control, Easier tool changes, Less Vibrations

• New weights for faster position change
• Redesigned frame allowing easier tool changes
• New ergonomic handle design – faster adjustability and more positions
• Rubber bushing used at head attachment points – less vibrations for user
• Water tank cap
• Internal storage compartment

Technical Specifications

• Propane Engine: KOHLER® PCV 740
• Engine Capacity: 24 hp / 17.9 kW /  747 cc, 45 cu. in
• Weight of Machine: 926 lbs / 420 kg
• Grinding Pressure, Integrated Weights with 4 positions: 388 - 573 lbs / 176 - 260 kg
• Tool Holder RPM: 425-765 rpm
• Engine RPM: 2000-3600 rpm
• Working Width: 30.8 in / 783 mm
• Tool Holder Diameter: 3 x 13.2 in / 3 x 335mm
• Application: Wet or Dry
• Vacuum Hose Port: Camlock E300
• Water Feeding from tank, or hose connection: Gravity-fed
• Water Tank Capacity: 5.2 Gal / 20 L
• Propane Tank Capacity: 20 lbs / 9 kg
• Machine Size (L x W x H): 86 x 32 x 46 in

This product will be shipped via a freight carrier using LTL shipping methods.
