Concrete Polishing HQ  |  SKU: L31GS7

Lavina® L31GS7 Planetary Grinding and Polishing Machine - Propane

The L31GS7 stands as a formidable 31-inch propane-driven floor grinding system built to tackle the most demanding concrete finishing work. Equipped with a high-performance Vanguard 35 hp engine and delivering approximately 800 lbs of downward force, this machine commands the power and capability required for serious material removal and surface preparation tasks.

$28,990.00
Shipping calculated at checkout.

L31GS7 is a 31″ propane floor machine, designed for heavy-duty grinding. With a powerful Vanguard 35 hp engine and almost 800 lbs of head pressure, this machine is a beast.

Proper air ventilation with access to FRESH AIR and proper equipment maintenance (see manual) are of critical importance for operator’s safety on indoor job sites. Operators should always carry CO monitor or badge.

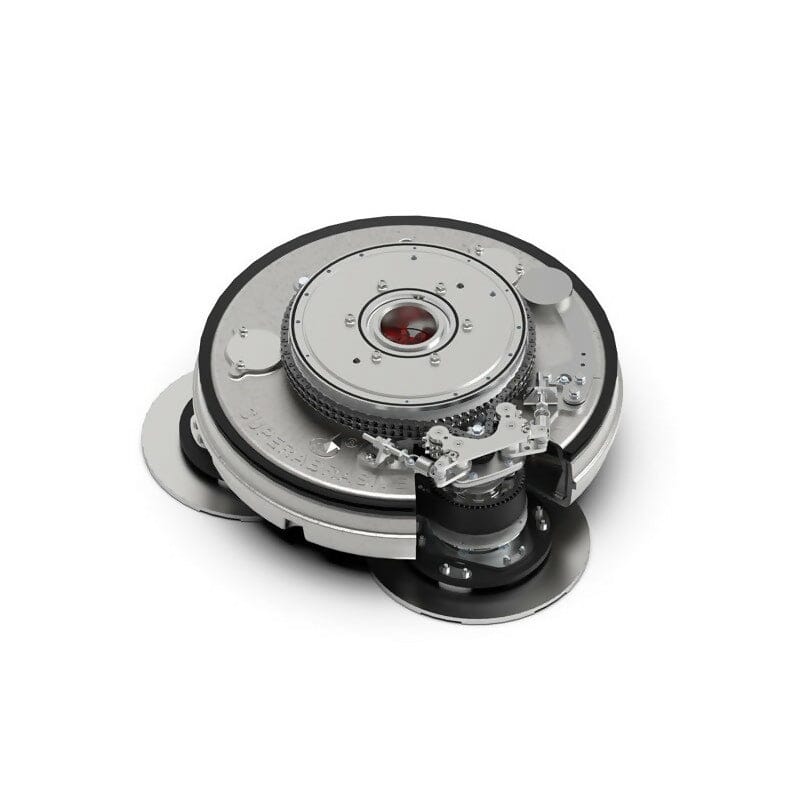

Features & Benefits - NEW SEALED & DUST-PROOF GRINDING HEAD

  • Longer service life and less maintenance.
  • Completely redesigned chain-driven planetary drive
  • New stronger timing belt
  • Upgraded shafts, seals and bearings
  • New lighter timing pulleys for better power transmission
  • New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance

New Frame Design - Better control, easier tool changes, and less vibrations.

  • New weights for faster position change

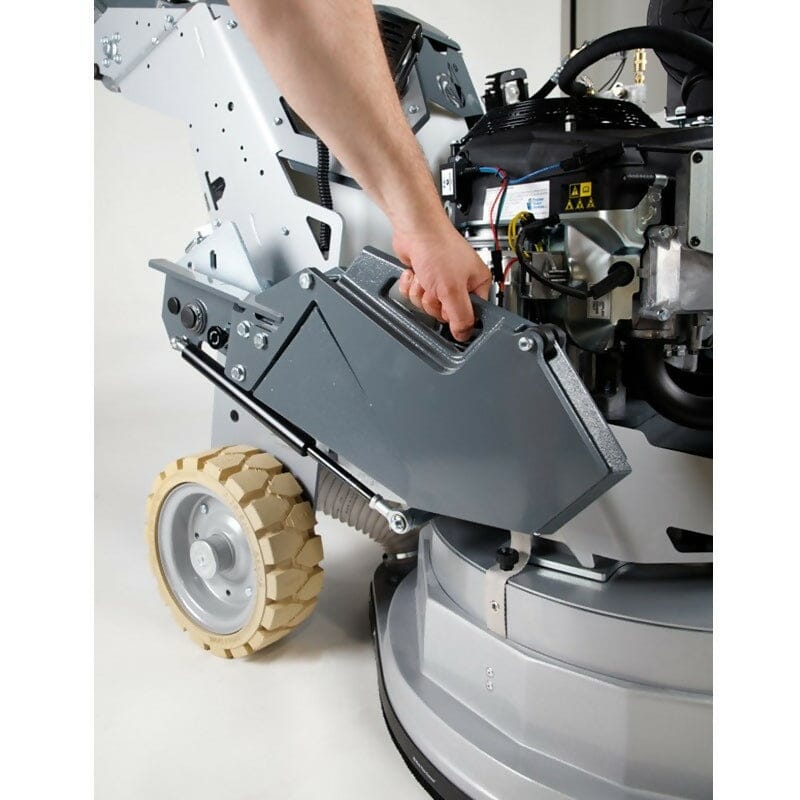

  • Redesigned frame allowing easier tool changes
  • New ergonomic handle design – faster adjustability and more positions
  • Rubber bushing used at head attachment points – fewer vibrations for user
  • Water tank cap
  • Internal storage compartment

Technical Specifications

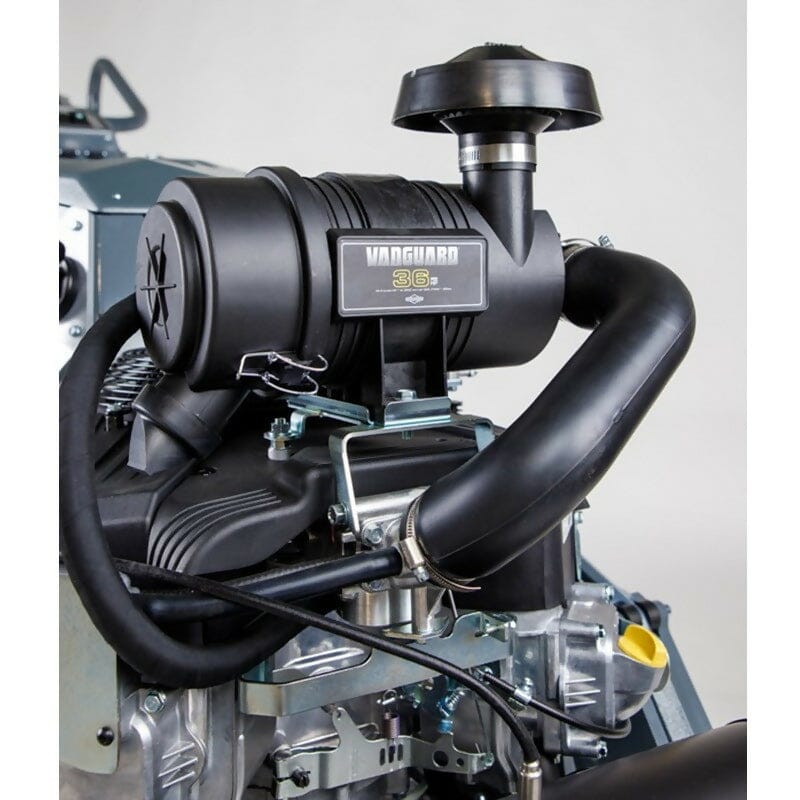

  • Propane Engine: VANGUARD
  • Engine Capacity: 35 hp / 26 kW / 993 cc
  • Weight of Machine: 1014 lbs / 460 kg
  • Grinding Pressure: 392-690 lbs / 178-313 kg
  • With Optional Weight: 794 lbs / 360 kg
  • Engine RPM: 2000-3600 rpm
  • Working Width: 30.8 in / 783 mm

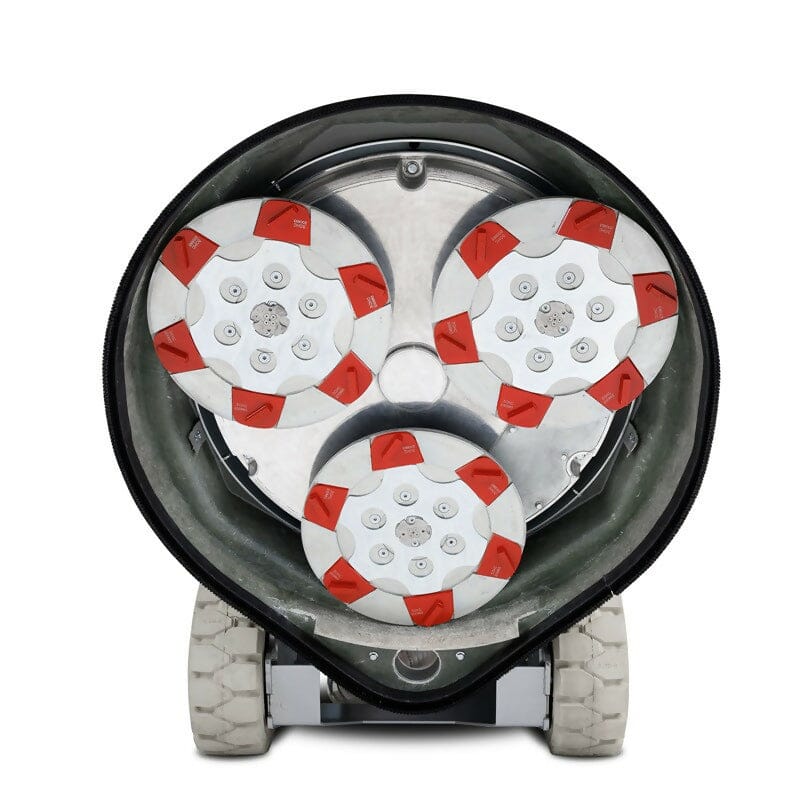

  • Toolholder Diameter: 3 x 13.2in / 3 x 335mm
  • Heads Rotation: Counterclockwise
  • Vacuum Hose Port: Camlock E300
  • Propane Tank Capacity: 20 lbs / 9 kg
  • Water Tank Capacity: 5.2 gal / 20 L
  • Water Feed (tank or hose): gravity-fed
  • Machine Size (L x W x H): 86 x 32 x 46 in / 218 x 82 x 116 cm

This product will be shipped via a freight carrier using LTL shipping methods.
