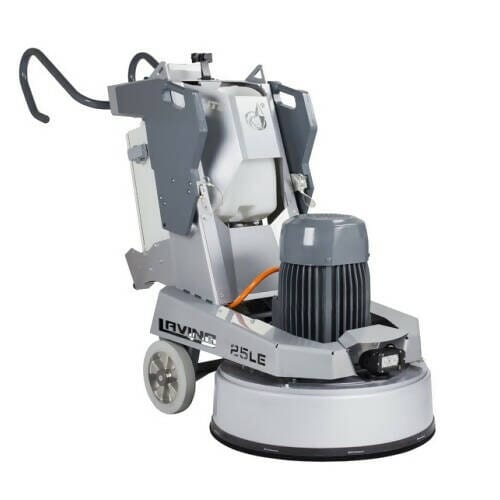

Lavina® 25L Elite HV Three Head Planetary Grinding and Polishing Machine

$16,490.00
SKU L25LEHV
  • NEW REAR WHEEL SET - this new feature makes grinder transportation and loading easier. It comes installed on all 20/25/30-inch Elite machines, and it is also available as an accessory for previous Elite models.
  • NEW OPTIONAL LEVER FOR LIFTING THE MACHINE UP (available for all 25/30-inch Elite machines).
  • Completely redesigned frame delivers superior maneuverability and easy tool changes.
  • Dust-proof grinding head with low-friction chain gear planetary drive protects internal components from dust and moisture, which reduces maintenance and increases service life.
  • The chain has been upgraded on 20/25/30-inch models.
  • New tool security lock on all models for safer tool attachment. And, with the introduction of our Quick Change Hybrid and Resin tooling line, we have eliminated the need for foam plates.Please note that Elite models do not come with any foam plates, and we can not supply those.
  • New Dust Suppression Fine Misting System with high pressure spray nozzles. Small water droplets effectively suppress and remove breathable fugitive dust particles from 0.1 to 1000 microns. In addition, water can be delivered under the machine at the same time for optimal tool performance. Upgraded water pump.
  • Easy-to-use integrated weights on all models, except L20E (4hp, 3kW). With the weights down, you increase the grinding head pressure, and you can grind more aggressively.
  • Improved dust collection efficiency. Adjustable skirt with a flexible brush for better dust containment. Also, the vacuum hose connection is now closer to the dust source, and utilizes a metal camlock attachment.
  • Added protection on 3 phase, 220 V electric models to prevent machine damage if plugged into high voltage.
  • New adjustable handle bar with multiple handle positions for more convenient operation and transportation. Make sure the handle position is locked when moving or using the machine.
  • Two LED lights for monitoring the floor. A detachable LED light (with a magnet) on the base in the front improves visibility, and a second LED light attached in the back of the machine near the floor helps monitor the scratch pattern.
  • Convenient integrated lift points for moving the machine with a forklift.
  • Charging phone station with dual USB 2.0 ports, 3.15 Amps for faster charging with a shutoff when charge is complete.
  • Durable stainless steel cup holder.



  • Horsepower: 15 HP / 11 kw
    Voltage (50/60 Hz): 3ph x 200-240V OR 3ph 380-480V, 30 Amp max
    Amperage (max): 45 Amp
    Dedicated Breaker Requirement: 45 Amp
    Generator Recommendation: 33 KW

    Weight of Machine: 838 lbs / 380 kg
    Grinding Pressure Weights UP: 443 lbs / 201 kg
    Grinding Pressure Weights DOWN: 522 lbs / 237 kg

    Attachment Speed: 300-1100 rpm
    Working Width: 25.8 in / 655 mm
    Tool Holder Diameter: 3 x 9 in / 3 x 225 mm

    Vacuum Hose Port: Camlock E250
    Water feeding (with pump): Peripheral or Front Mist
    Water tank capacity: 5.2 gallons / 20 L
    Cable Length: 57 ft / 17.4 m

    Machine Size: 71 x 28 x 48 in / 180 x 71 x 122 cm
    Crate Size: 58 x 33 x 57 in / 148 x 84 x 146 cm

  •





  • This product will be shipped via a freight carrier using LTL shipping methods.
