Concrete Polishing HQ  |  SKU: L20EB

Lavina® 20 Elite Three Head 3x9"(225mm) Planetary Grinding and Polishing Machine

$9,990.00
Shipping calculated at checkout.

  • Completely redesigned frame delivers superior maneuverability and easy tool changes.

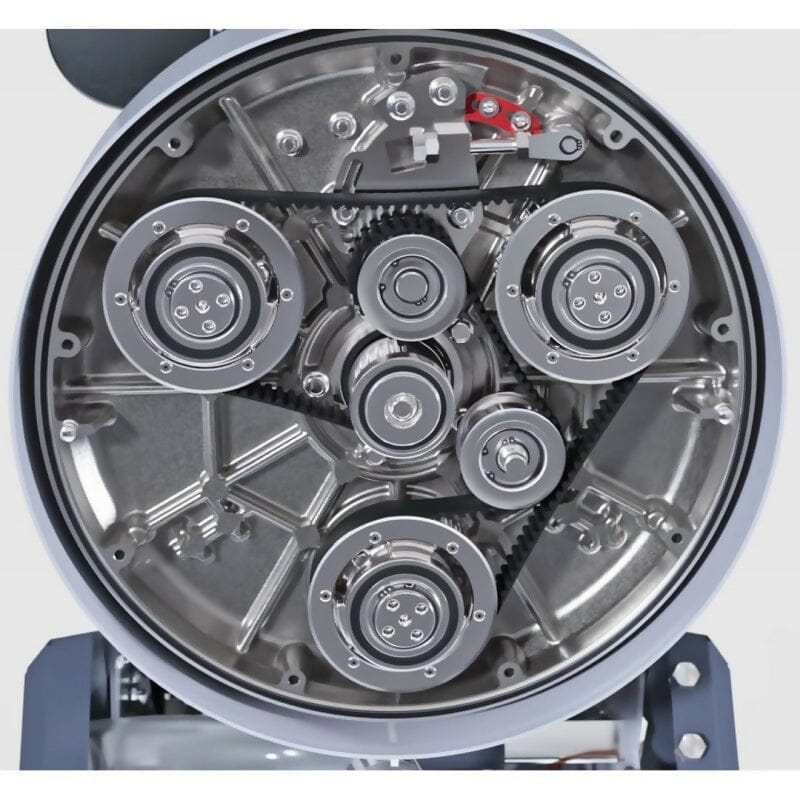

  • Dust-proof grinding head with low-friction chain gear planetary drive protects internal components from dust and moisture, which reduces maintenance and increases service life.
  • The chain has been upgraded on 20/25/30-inch models.
  • New tool security lock on all models for safer tool attachment. And, with the introduction of our Quick Change Hybrid and Resin tooling line, we have eliminated the need for foam plates.Please note that Elite models do not come with any foam plates, and we can not supply those.
  • New Dust Suppression Fine Misting System with high pressure spray nozzles. Small water droplets effectively suppress and remove breathable fugitive dust particles from 0.1 to 1000 microns. In addition, water can be delivered under the machine at the same time for optimal tool performance. Upgraded water pump.
  • Improved dust collection efficiency. Adjustable skirt with a flexible brush for better dust containment. Also, the vacuum hose connection is now closer to the dust source, and utilizes a metal camlock attachment.
  • New adjustable handle bar with multiple handle positions for more convenient operation and transportation. Make sure the handle position is locked when moving or using the machine.
  • Two LED lights for monitoring the floor. A detachable LED light (with a magnet) on the base in the front improves visibility, and a second LED light attached in the back of the machine near the floor helps monitor the scratch pattern.
  • Convenient integrated lift points for moving the machine with a forklift.
  • Charging phone station with dual USB 2.0 ports, 3.15 Amps for faster charging with a shutoff when charge is complete.
  • Durable stainless steel cup holder.



Equipment Specifications
Horsepower: 4 HP / 3 KW

Voltage (50/60 Hz): 1 ph x 200-240V
Amperage (max): 14 Amp
Dedicated Breaker Requirement: 20 Amp
Generator Recommendation: 9 KW

Weight of Machine: 443 lbs / 201 kg
Grinding Pressure: 190 lbs / 86 kg
Additional Weight: No

Attachment Speed: 300 - 1100 rpm
Working Width: 20 inc / 510 mm"
Tool Holder Diameter: 3 x 9" / 3 x 225mm

Application: Wet or Dry
Vacuum Port: Camlock E250 or 2 in hose
Water feeding (with pump): Peripheral or Front Mist
Water tank capacity: 5.2 gallons / 20 L
Cable Length: 57 ft / 17.4 m

Machine Size: 66 x 22 48 in (168 x 56 x 122mm)
Crate Size: 55 x 29 x 56 in (139 x 71 x 140 cm)



This product will be shipped via a freight carrier using LTL shipping methods.


Lavina® 20 Elite Three Head 3x9"(225mm) Planetary Grinding and Polishing Machine Equipment Concrete Polishing HQ 4HP(3kW) 1ph 200-240V 14 Amps width 20"(51cm)
Concrete Polishing HQ

Lavina® 20 Elite Three Head 3x9"(225mm) Planetary Grinding and Polishing Machine

$9,990.00



Equipment Specifications
Horsepower: 4 HP / 3 KW

Voltage (50/60 Hz): 1 ph x 200-240V
Amperage (max): 14 Amp
Dedicated Breaker Requirement: 20 Amp
Generator Recommendation: 9 KW

Weight of Machine: 443 lbs / 201 kg
Grinding Pressure: 190 lbs / 86 kg
Additional Weight: No

Attachment Speed: 300 - 1100 rpm
Working Width: 20 inc / 510 mm"
Tool Holder Diameter: 3 x 9" / 3 x 225mm

Application: Wet or Dry
Vacuum Port: Camlock E250 or 2 in hose
Water feeding (with pump): Peripheral or Front Mist
Water tank capacity: 5.2 gallons / 20 L
Cable Length: 57 ft / 17.4 m

Machine Size: 66 x 22 48 in (168 x 56 x 122mm)
Crate Size: 55 x 29 x 56 in (139 x 71 x 140 cm)



This product will be shipped via a freight carrier using LTL shipping methods.
