Imer USA  |  SKU: 1106351

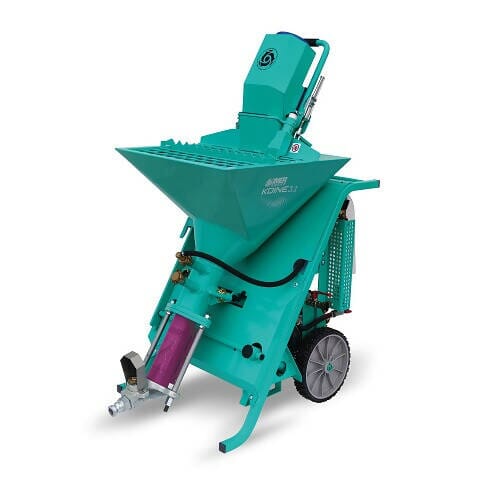

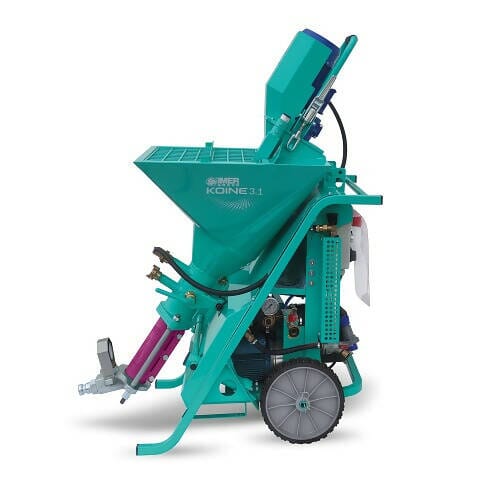

Koine 3.1 - Continuous Cycle Spraying and Mixing Pump

$15,999.00
Shipping calculated at checkout.

The new Koine 3.1 is designed to be versatile and easy to use even by the less experienced operator, thanks to the proven Easy Start system and the interactive display.

Suitable for the application of all the premixed products contained in bags, with a particular aptitude for the application of structural mortars, dehumidifying materials and products for smoothing thermal insulation panels.

Koine 3.1 turns into a pump for ready-to-use paste smoothing products, injection mortars and grouting mortars, simply by turning a switch on the control panel and adjusting the material flow rate as you like. In particular, the "Coat" version is equipped with a 400 l / min piston compressor, optimized for the application of fiber-rich or highly viscous smoothing products.

Suitable for the application of:

Dry premixed materials (Dry mode)

  • Mortars for gluing and smoothing thermal insulation panels
  • Mortars for concrete / lime based structural reinforcement
  • Restoring / dehumidifying mortars for masonry walls
  • Binders / mortars for consolidation injections
  • Lime / cement / gypsum based plasters
  • Lime / cement / gypsum based smoothers
  • Insulating plasters based on polystyrene or cork
  • Cement / anhydride based self-levelling screeds
  • Fireproofing mortars

Wet materials (Wet mode)

  • Finishing coatings, mineral smoothers with silicates or quartz
  • Waterproofing products, even fiber-reinforced
  • Smoothers for elastomeric / water-repellent finishing
  • Binders / mortars for consolidation injections
  • Mortars for grouting /spacing



Technical Data
  • Power Supply: 230V/50Hz
  • Max Installed Power: 3.4 kw
  • Mixing Motor Power: 2.2 kw
  • Electropump motor power: 0.45 kw
  • Electric compressor: 0.75-250 kw-l/min
  • Material flow Dry mode*: 7-17 l/min
  • Material flow Wet mode*: 2.3-17 l/min
  • Pumping distance*: 25 m
  • Pumping height*: 15 m
  • Hopper capacity: 75 l
  • Loading height: 1000 mm
  • Sound pressure level: <75 db="" a="" li="">
  • Dimensions w / l / h: 660 x 1060 x 1500 mm
  • Complete machine weight: 159 kg
