Rhopoint Americas Inc.  |  SKU: IQ-20/60

IQ 20/60 Concrete Clarity Meter (CCM)

$4,188.00
Shipping calculated at checkout.

The Rhopoint IQ Concrete Clarity Meter measures Reflected Image Quality; it is the only hand held instrument that profiles how light is reflected from a surface. Glossmeters are usually used to measure the shininess of a surface but are not sensitive to other effects which reduce appearance quality.

Unlike a standard glossmeter the IQ Concrete Clarity Meter has the unique capability of measuring and detecting quality problems caused by microscopic texture in the surface that cause haze and orange-peel effects which lead to poor Distinctness of Image (DOI).

These factors can seriously affect the visual impact and reflective quality of many coated, painted and polished surfaces. By measuring the quality of the reflected image it accurately profiles how light is reflected from a surface.

The Concrete Clarity Meter (CCM) can measure:
  • 20/60° Gloss
  • RSPEC
  • Reflectance haze
  • Reflected image quality (RIQ)
  • Distinctness of Image (DOI)



 Concrete Polishing Council Polished Concrete Appearance Chart
Level Name Distinctness of Image (DOI) Gloss Image Clarity Value, % Level
1 Flat
(Ground)
Images of objects being reflected have a flat appearance 0-9 <10
2 Satin
(Honed)
Images of objects being reflected have a matte appearance 10-39
3 Polished Images of objects being reflected do not have a sharp or crisp appearance, but can be easily identified 40-69
4 Highly
Polished
Images of objects being reflected have a sharp and crisp appearance as would be seen in a near-mirror like reflection. May require grouting 70-100
Features
  • Compatible with concrete polishing standards
  • Simultaneous measurement of all parameters, results are date/time stamped.
  • Statistics per measured parameter.
  • Graphical reporting for quick trend analysis.
  • Easy Batching: User definable batch names and batch sizes for quicker and more efficient reporting.
  • Software-free Rapid Data Transfer: USB connection to a computer instantly recognizes the device as a drive location, which facilitates the quick transfer of files using Windows File Explorer or similar programs.
  • Full color easy to read screen
  • Adjustable brightness
  • 6 button touch sensitive interface
  • All aluminum construction - enclosure, optics, standard holder
  • Integrated calibration holder with in-position detector for error-free calibration



Instrument Information
  • Battery Type: Rechargeable lithium-ion
  • Operation: 17+ hours
  • Readings per charge: 20,000+
  • Memory: 8MB, 2,000 readings
  • Operating Temperature: 15°C - 40°C (60°F - 104°F)
  • Operating Humidity: Up to 85% (non condensing)
  • Dimensions: 140mm (H) x 50mm (W) x 65mm (D)
  • Weight: 390g

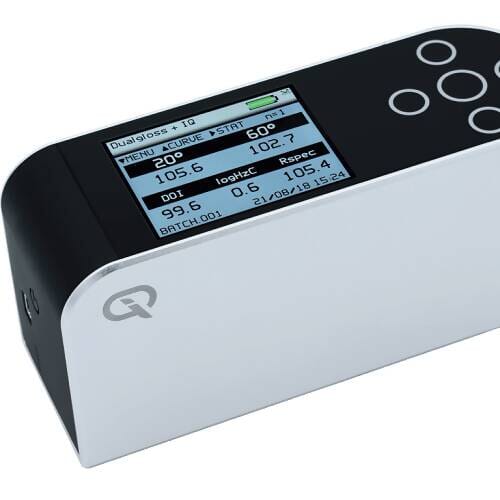

IQ 20/60 Concrete Clarity Meter (CCM) Rhopoint Americas Inc.
