Imer USA  |  SKU: 1106312

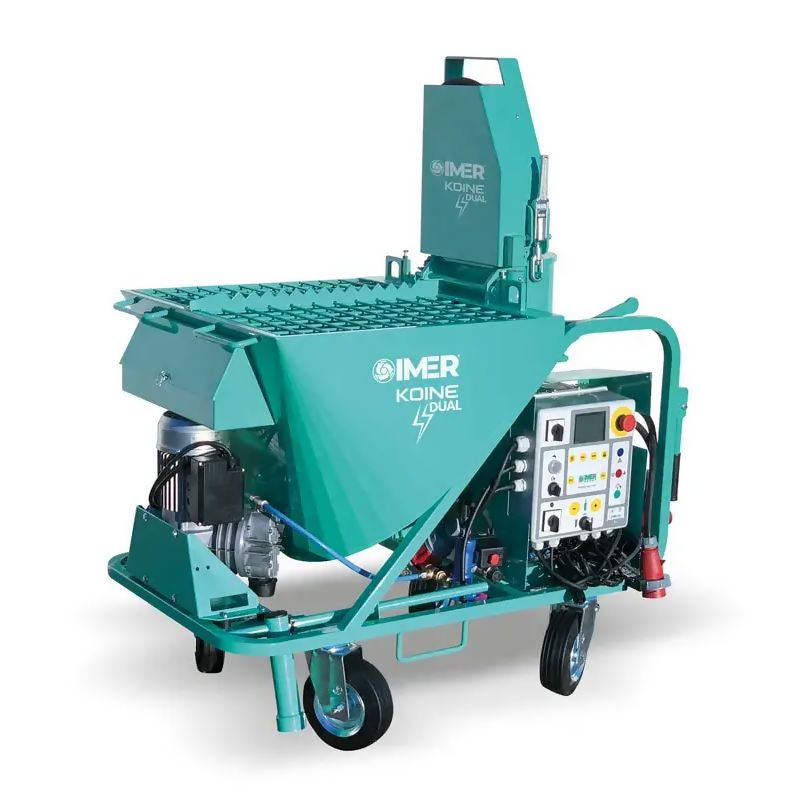

Koine Dual Continuous Mixer - Pump

$21,999.00
Shipping calculated at checkout.

Continuous Operation Means Efficient and Effective Production

The Koine Dual continuous pumps make batching, mixing and pumping easy. Set the water level based on the material requirements and let the pump do the work. Break bags directly into the hopper as the feeding wheel delivers the dry material into the mixing chamber where metered water is introduced. A high shear mixing paddle spins up to 400 RPM on the Koine to whip the material up and discharges into the stator where the rotor creates the pressure to push the material into the hose. A rotor driven impeller ensures that the material is thoroughly mixed before it is placed. The Dual gets it’s name from having the ability to run on single phase or 3 phase. No more need to decide which one is right for you.

Standard Features

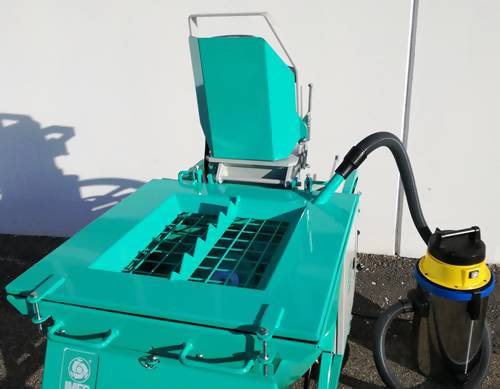

• Dust Grate with Vacuum port
• R8 Stator and rotor with tab
• Turbo mixer kit
• Material delivery pressure gauge
• Gear driven feed impeller
• Self-priming stainless steel water pump
• 35mm hose clean-out adapter
​• Water system with flow meter and no freeze discharge valve
• 130’ electric cord
• 130’ water hose Ø 19 mm (3/4”)
• 33’ material hose Ø 35 mm (1-3/8”) with quick connects
• Integrated tool storage box
• Clean up kit (scraper and sponge)

Technical Specifications

  • Model # - 1106312
  • Power Supply 3Ø / 1Ø - 208 V / 240 V
  • Total Machine Power - 9 HP
  • Drive Motor - 7.5 HP
  • Feeding Wheel Motor - 1 HP
  • Water Pump - 1 HP
  • Material Flow Rate - Up to 140 cu ft / hr
  • Bags / hr (SLU) - Up to 300
  • Loading Height - 36 in
  • Dimensions w/l/h - 29 in x 47 in x 62 in
  • Weight - 574 lbs
