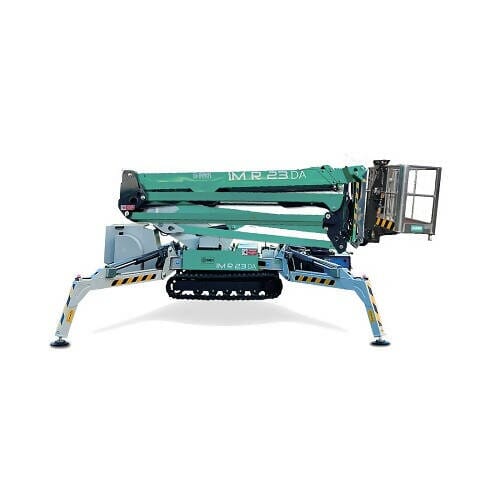

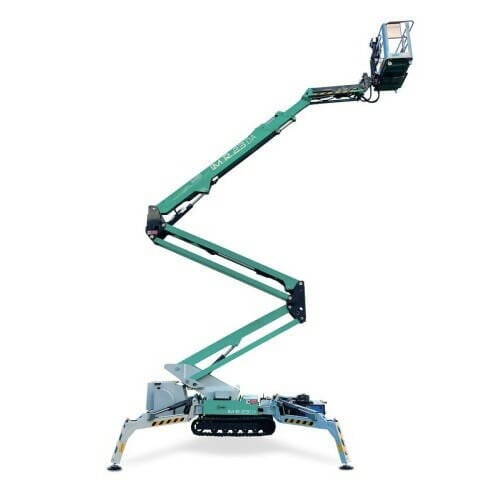

IM R 23 DA Spider Lift

Articulated & Telescopic Lift with a Working Height of 75 Ft

Platform Height 68 Ft, Side outreach (ft / lb) 35’ / 507 -- 39’ / 308

The IM R Series is an easy to operate, compact and light-weight solution for maximum clearance and versatility. The reduced size of the units and portable remote controls ensure maneuverability in tight spaces while providing added operator safety. In addition, ​track-driven capabilities offer maximum versatility for both outdoor and indoor applications.

Model # 1128632

​Standard Equipment

• Automatic outrigger leveling system
• 355° rotation (not continuous)
• Emergency hand pump
• Cylinder holding valve
• Hour meter
• Load and tip detection sensor
• Load cell
• Hydraulic jib
• Rubber tracks
• 230V, 16 amp electric motor for indoor use
• Air / Water outlet in the platform basket
• 120V AC power to platform
• Removable wired control box
• Three travel speeds
• Wired control
• Remote battery charger
• Removable basket with 1 pin detach
• Overload sensor
• 120V battery charger
• Proportional controls with diagnostics
• GX800 Honda Engine
• Hydraulically adjustable track width
• 12 V emergency pump
• 8” outrigger pads
• Wireless radio remote control box
• Hydraulic basket rotation - 124°

Technical Specifications

• Working Height: 75'
• Platform Height: 68'
• Side Outreach: 35' / 507 lbs - 39' / 308 lbs
• Rotation (non-continuous): 355 degrees
• Basket Dimensions: 54" x 30" x 42"
• Basket Rotation: 124 deg
• Transport Length (without basket): 18' 8" (4' 2")
• Transport Width (without basket): Max - 3' 2"
• Height in stowed position (with stabilizers in position: 6'6"
• Overall outrigger footprint: 12' 9" x 12' 1"
• Stabilizer Load: 3930 psf
• Driving Speed: 0 - 1.7 mph
• Gradeability: 18%
• Platform Capacity: 510 lb
• Machine Weight: 6525 lbs
