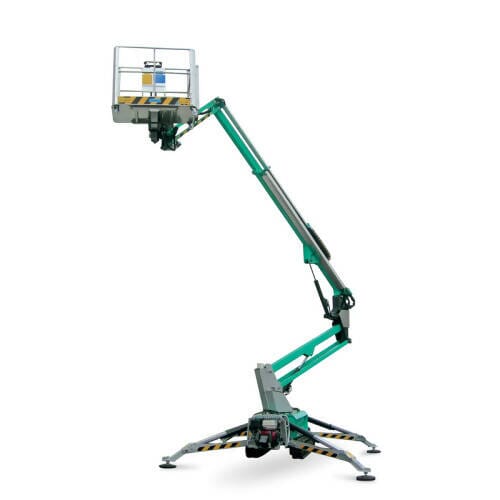

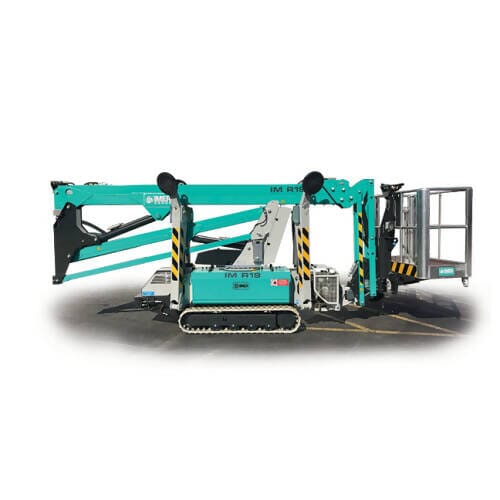

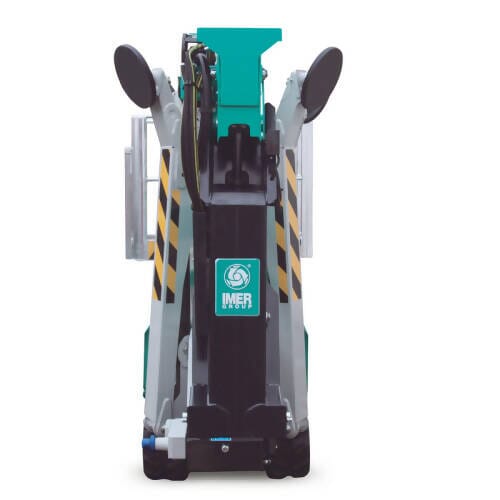

IM R 19 Li Spider Lift

Articulated & Telescopic Lift with a Working Height of 62 Ft

Platform Height 56 Ft, Side outreach (ft / lb) 32’ / 176 -- 28’ / 310 -- 23’ / 510

The IM R Series is an easy to operate, compact and light-weight solution for maximum clearance and versatility. The reduced size of the units and portable remote controls ensure maneuverability in tight spaces while providing added operator safety. In addition, track-driven capabilities offer maximum versatility for both outdoor and indoor applications.

Model # 1128338

​Standard Equipment

• Automatic outrigger leveling system
• 360° rotation (not continuous)
• Emergency hand pump
• Cylinder holding valve
• Hour meter
• Load and tip detection sensor
• Load cell
• Hydraulic jib
• Rubber tracks
• Electric motor for indoor use
• Air / Water outlet in the platform basket
• AC power to platform
• Removable wired control box
• Three travel speeds
• Wired control
• Remote battery charger
• Removable basket with 1 pin detach
• Overload sensor
• 120V battery charger
• Proportional controls with diagnostics
• GX390 Honda Engine
• Hydraulically adjustable track width
• 12 V emergency pump
• Oversized 14” outrigger pads Wireless radio remote control box

Technical Specifications

• Working Height: 62'
• Platform Height: 56'
• Side Outreach: 35' / 178 lbs - 29' / 310 lbs - 23' / 510 lba
• Rotation (non-continuous): 360 degrees
• Basket Dimensions: 57" x 28" x 43"
• Basket Rotation: 124 deg
• Transport Length (without basket): 17' 5" (15' 2")
• Transport Width (without basket): Min - 2' 7"/ Max - 3' 6"
• Height in stowed position (with stabilizers in postition: Min 6'6" / Max 6'11"
• Overall outrigger footprint: 9' 6" x 9' 8"
• Stabilizer Load: 3930 psf
• Driving Speed: 0 - 1.24 mph
• Gradeability: 32%
• Electric Pump: 120V / 1.5 HP
• Max Hydraulic Pressure: 3190 psi
• Battery: 12 V/Ah
• Battery Charger: 12V / 12A
• Gas Motor: Honda GX390 - 11 HP 3600 rpm
• Machine Weight: 5370 lbs
