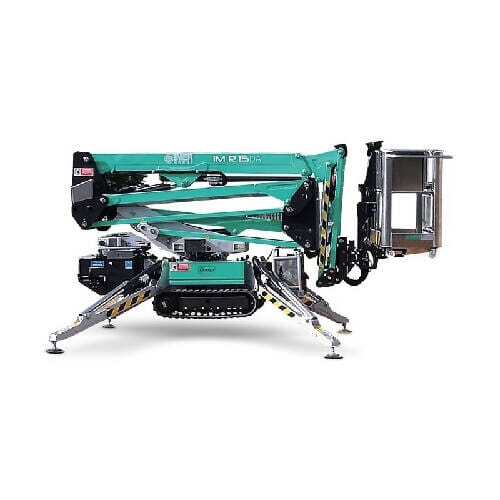

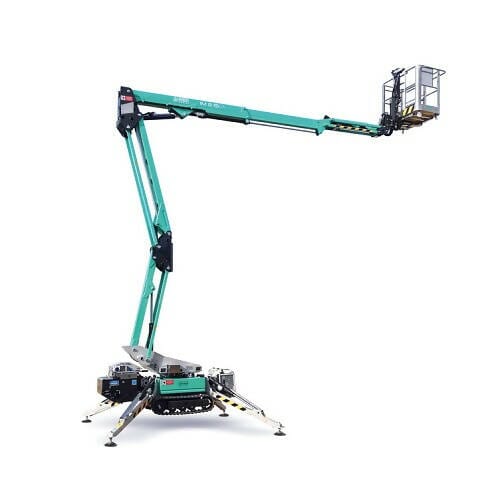

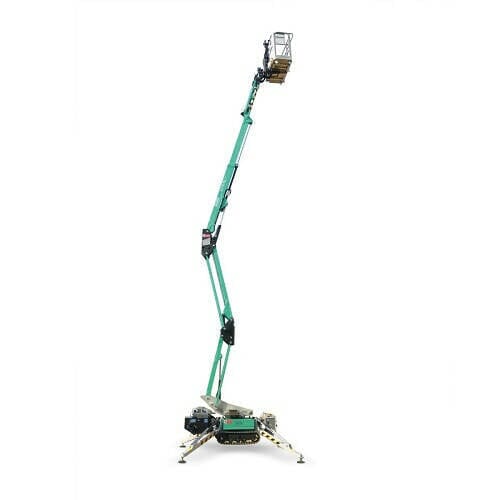

IM R 15 DA Spider Lift

Telescopic Lift with a Working Height of 49'-6" Ft (13.1 m)

Platform Height 43 Ft, Side outreach (ft / lb) 23’ / 506

The IM R Series is an easy to operate, compact and light-weight solution for maximum clearance and versatility. The reduced size of the units and portable remote controls ensure maneuverability in tight spaces while providing added operator safety. In addition, track-driven capabilities offer maximum versatility for both outdoor and indoor ​applications.

Model # 1128579

​Standard Equipment

• ​Automatic outrigger leveling system
• 355° rotation (non-continuous)
• Hydraulic basket rotation - 124°
• 120V, 15 amp electric motor for indoor use
• Air / Water outlet in the platform basket
• 120V AC power to platform
• Removable wireless control box
• Tether for wired connectivity
• Max 510 lbs in basket (two person capacity)
• Three travel speeds
• Emergency hand pump
• Cylinder holding valve
• Hour meter
• Load and tip detection sensor
• Load cell
• Hydraulic jib
• Rubber tracks
• Remote battery charger
• Removable basket with 1 pin detach
• Overload sensor
• 120V battery charger
• Honda iGX390 engine
• Yanmar L100N diesel engine
• Hydraulically adjustable track width
• Proportional controls with diagnostics

Technical Specifications

• Working Height: 49'6"'
• Platform Height: 43'
• Side Outreach (weight in basket): 23' / 506 lbs
• Rotation (non-continuous): 355 degrees
• Basket Dimensions: 57" x 27 1/2" x 43"
• Basket Rotation: 124 deg
• Transport Length (without basket): 14' 5"/ 12'
• Transport Width (without basket): Min - 2' 7"/ Max - 3' 5"
• Height in stowed position (with stabilizers in postition: Min 6' 6" / Max 6'11"
• Overall outrigger footprint: 9' 6" x 10'
• Stabilizer Load: 3930 psf
• Driving Speed: 0 - 1.12 mph
• Gradeability: 17 deg / 32%
• Platform Capacity: 507 lbs
• Electric Pump: 120V / 1.5 HP
• Max Hydraulic Pressure: 3190 psi
• Diesel Engine Tanmar L10N: 9.9 HP / 3600 rpm
• Gas Motor: Honda GX390 - 11 HP 3600 rpm
• Machine Weight: 4475 lbs


IM R 15 Li also available - call for details
