Imer USA  |  SKU: 1128728+1129065+1129066

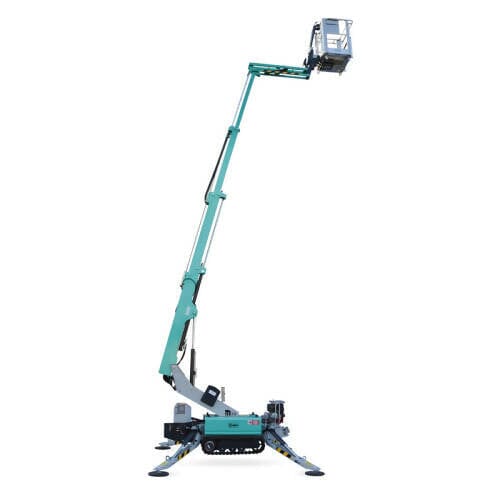

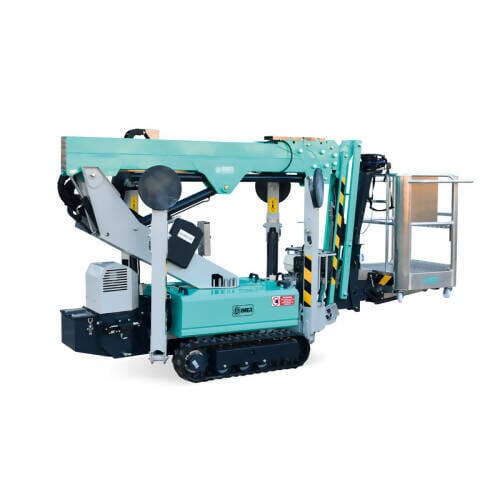

IM R 13 Spider Lift

$86,200.00
Shipping calculated at checkout.

Articulated & Telescopic Lift with a Working Height of 42 Ft (13 m)

Platform Height 36 Ft, Side outreach (ft / lb) 17’ / 510 - 20’ 6” / 308

The IM R Series is an easy to operate, compact and light-weight solution for maximum clearance and versatility. The reduced size of the units and portable remote controls ensure maneuverability in tight spaces while providing added operator safety. In addition, track-driven capabilities offer maximum versatility for both outdoor and indoor applications.

Model # 1128728

​Standard Equipment
  • Automatic outrigger leveling system
  • 360° rotation (not continuous)
  • Emergency hand pump
  • Cylinder holding valve
  • Hour meter
  • Load and tip detection sensor
  • Load cell
  • Hydraulic jib
  • Rubber tracks
  • Electric motor for indoor use
  • Air / Water outlet in the platform basket
  • AC power to platform

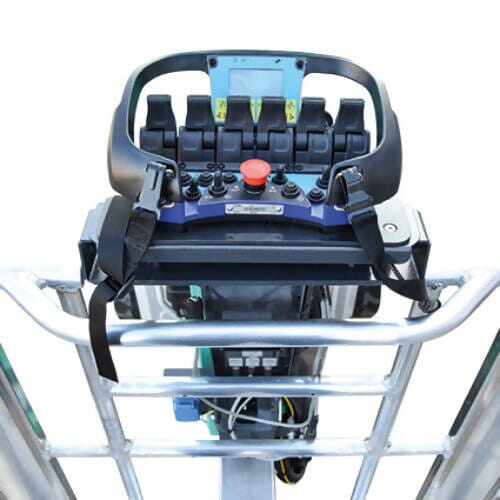

  • Removable wired control box
  • Three travel speeds
  • Wired control
  • Remote battery charger
  • Removable basket with 1 pin detach
  • Overload sensor
  • 120V battery charger
  • Proportional controls with diagnostics
  • GX390 Honda Engine



Technical Specifications
  • Working Height: 42' 6""'
  • Platform Height: 36'
  • Side Outreach: 17' / 510 lbs - 20'6" / 308 lbs
  • Rotation (non-continuous): 360 degrees
  • Basket Dimensions: 51" x 28" x 43"
  • Transport Length (without basket): 12' 4"/ 9' 8"'
  • Transport Width (without basket): 4' 6"/ 2' 6"
  • Height in stowed position (with stabilizers in position: 6'6 3/4"
  • Overall outrigger footprint: 8'8" / 9' 2"
  • Driving Speed: 0.93 mph
  • Gradeability: 17 deg (30%)
  • Platform Capacity: 510 lbs
  • Electric Motor: 230V / 2.95HP
  • Max Hydraulic Pressure: 3190 psi
  • Gas Motor: Honda GX390 - 11 HP 3600 rpm
  • Machine Weight: 3296 lbs


Ask about the wireless radio remote control box
