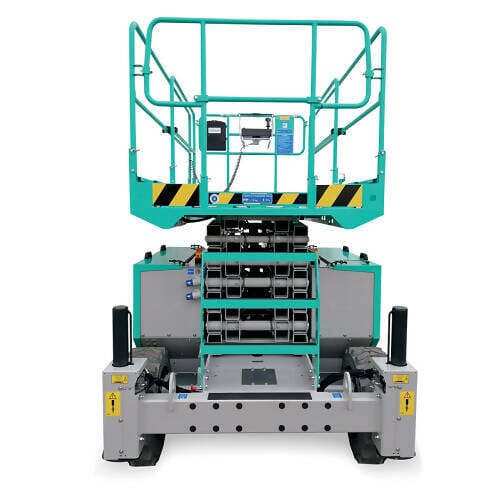

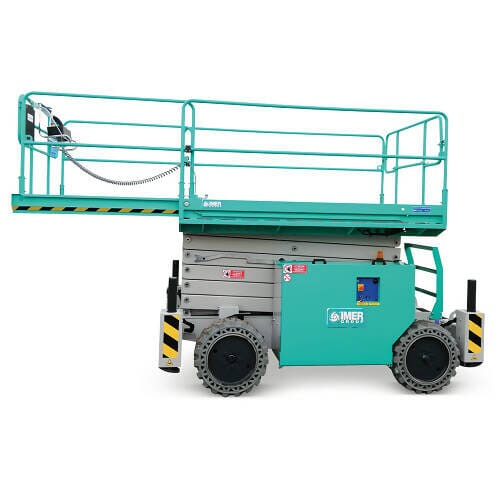

IM 7043 DE Scissor Lift

Electric Scissor with a Working Height of 49 Ft

​Platform Height of 43 Ft | Base Width of 69 Inches

​Platform Length (Extended) 13' - 8"

Basket length 8'-9" | Basket Extension 59"

Engineered to allow operators to drive in any position, including at full height, providing superior productivity.

Model # 1128696

​Standard Equipment

• Manual deck extension (full capacity on deck)
• Front driving and steering wheels
• 4 Wheel drive
• Oscillating axles
• Auto-leveling outriggers
• Hydraulic transmission 2WD
• Negative parking brakes
• Mechanical wheel drive disengagement (for emergency hauling)
• Manual emergency lowering device
• Proportional controls
• Diagnostic system
• Hour meter
• Cylinder’s holding valves
• Manual deck extension 59 in (1.5 m)
• Inclinometer with motion cut out and alarms
• Overload sensor
• Audible motion alarm
• Electric scissor protection
• Rough terrain tires extra grip
• Removable control box
• Fold down railings
• Flashing beacon
• 120 V cable with plug socket and safety cut-out

Technical Specifications

• Platform Height: 43'
• Working Height: 48'
• (Pot-hole Raised/Lowered): 12" / 1"
• Height Stowed: 5'6"
• Height (ground to platform bottom): 6' 9"
• Platform Length (extended): 13'8"
• Platform Length (outside): 8'9"
• Capacity/Number of People: 882 lbs / 4 People (2 people for outside use)
• Minimum Height from Chassis to Ground 12"
• Diesel Engine 48 HP
• Lifting Power Pack - hydraulic Type: 48 V / 3 HP
• Lifting/Lowering time (loaded): 36 / 35 seconds
• Battery Charger: 48V / 30A
• Hydraulic Tank Capacity: 14.8 Gal
• Drive Speed: D: 3.4 mph / E: 2.5 mph
• Safety Traction: 0.4 mph
• Gradeability: 2WD: 25% / 4WD 35%
• Internal Steering Radius: 5' 7" ft
• External Steering Radius: 15' 10" (14' 10" without stabilizers)
• Tire Size (wheel dimensions): 28" x 9 1/4"
• Wheel Type: Cushion
• Max Side/Longitudinal Tilt Angle: 1.5 / 2.5 degrees
• Total Weight: 10800 lbs
