Imer USA  |  SKU: 1128416

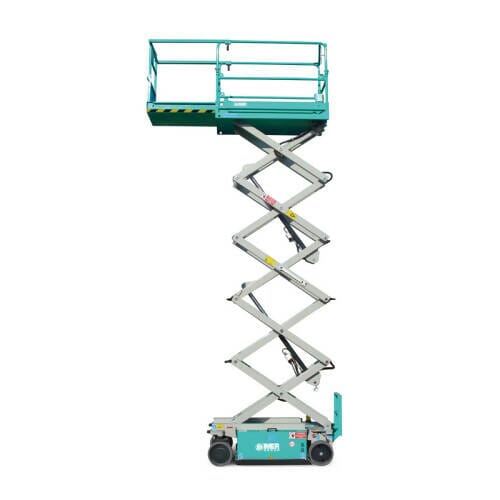

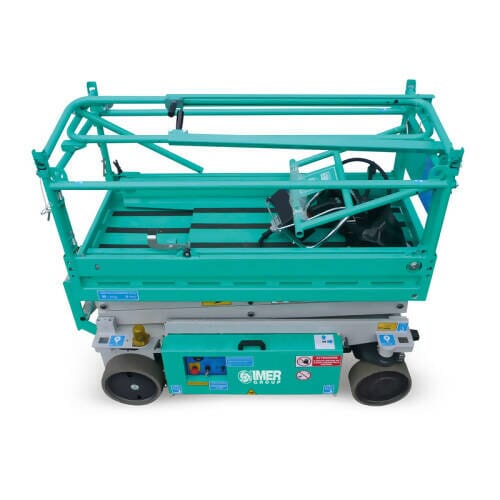

IM 3224 Scissor Lift

$22,499.00
Shipping calculated at checkout.
Electric Scissor with a Working Height of 30 Ft

Platform Height of 24 Ft. Base Width of 32 Inches

​
​Platform Length (Extended) 8' - 8"

Basket length 5'-5" | Basket Extension 39"

​Engineered to be compact and light-weight for easy clearance and maximum versatility. The reduced size, generous capacity, and optimized weight distribution ensure maneuverability in tight spaces with small steering angles. Operators may drive in any position, including at full height, providing superior productivity.

Model # 1128416

​Standard Equipment
  • Manual deck extension (holds two people)
  • Electric traction on the front wheels
  • Negative electromagnetic parking brakes with electric disengagement
  • 90° wheel steering
  • Manual deck extension of 39½”
  • Manual emergency lowering
  • Non-return valve on lifting cylinders
  • Traction batteries 24V-185Ah (c5)
  • Battery charger with automatic cut-off
  • All movement alarm, horn, hour meter
  • Tilt meter with motion cut-out and alarm
  • Mechanical release for emergency hauling
  • Solid rubber non-marking tires
  • Electric scissor protection
  • Pot Hole protection
  • Battery level control with low voltage protection
  • Foldable guardrails
  • Platform weight management
  • ANSI 92.20 / CSA / CE & EN280 approved
  • AC power to platform
  • Flashing beacon
  • Proportional controls with diagnostics

Technical Specifications
  • Platform Height: 23' 7 1/2"
  • Working Height: 30'
  • (Pot-hole Raised/Lowered): 3.5" / 1"
  • Height Stowed: 7'2"
  • Height (ground to platform bottom): 3' 6"
  • Height Storage (with guardrails): 5'11"
  • Platform Length (extended): 8'8"
  • Platform Length: 5'5"
  • Capacity/Number of People: 510 lbs / 2 People
  • Electric Drive Motors 24 V / 3.2 HP
  • Lifting Power Pack - hydraulic Type: 24 V / 2.8 HP
  • Lifting/Lowering time (loaded): 36 / 35 seconds
  • Battery (Traction battery) C5: 24V / 185 Ah
  • Battery Charger: 24V / 20A
  • Hydraulic Tank Capacity: 1.8 Gal
  • Drive Speed: 2.5 mph
  • Safety Traction: 0.4 mph
  • Gradeability: 25%
  • Internal Steering Radius: 0 ft
  • External Steering Radius: 5' 7"
  • Tire Size (wheel dimensions): 13" x 4"
  • Wheel Type: Cushion
  • Max Side/Longitudinal Tilt Angle: 1.5 / 2.5 degrees
  • Total Weight: 4045 lbs
