Imer USA  |  SKU: 1106126

GERRIS 800 - Crawler Concrete Placing Boom

$111,999.00
Shipping calculated at checkout.

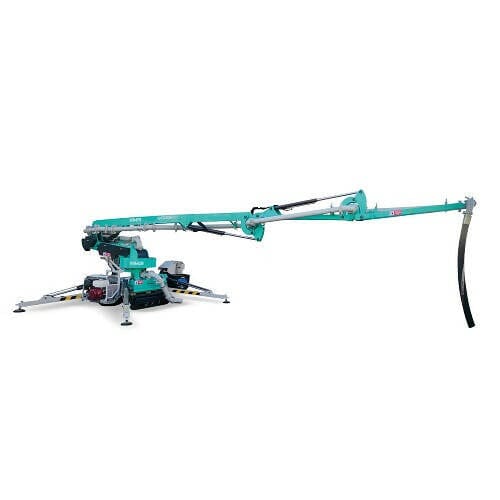

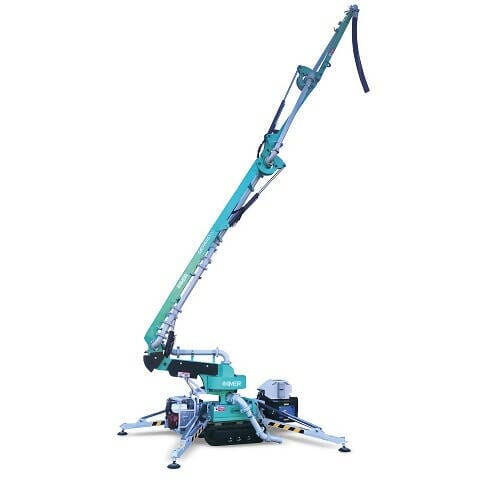

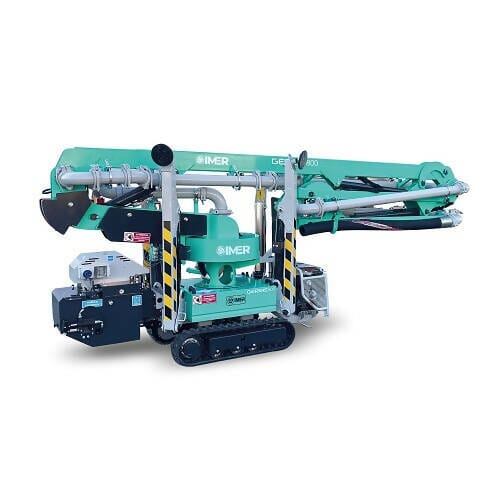

Gerris 800 is a self-propelled crawler concrete placing boom, with reduced dimensions (800 x 4930 mm) and low weight.

It is used to distribute pumped concrete, in any position within its range of about 8 m and up to a height of 11.20 m.

The distribution boom requires a small space for its opening (2.80 m). It is therefore able to operate even in places with not particularly high floors. Radio-controlled, simple and intuitive to maneuver and to position in the working area, thanks to the self-levelling outriggers.

The auxiliary electric motorization allows operation even in closed environments, in the absence of exhaust gases and noise of the petrol engine



Suitable for laying pumped mortars / concretes with a maximum grain size of 25 mm (1”):
  • Laying of concrete on foundation slabs
  • Laying of concrete on floors
  • Laying of concrete for pavements
  • Filling of form work for masonry works
  • Filling of form work for the construction of swimming pools
  • Filling of form work for columns (also disposable)
  • Filling of THERMAL INSULATION walls in EPS / EXPANDED CLAY / VEGETABLE FIBERS, with collaborating formwork or diffused reinforcement
  • Filling of prefabricated reinforced concrete walls
  • Filling of load-bearing reinforced walls
  • Filling castings for containment or foundation piles



Standard Equipment
  • Honda GX390 petrol hydraulic pump engine - 8.2 kW
  • Auxiliary hydraulic pump electric motor 230V/50Hz - 2.2 kW
  • Emergency manual hydraulic pump
  • Wireless radio-control with backlit display
  • Two rechargeable lithium batteries for radio-control
  • Lithium battery charger integrated on the machine
  • 12V maintenance battery charger installed on the machine
  • Control panel on the machine
  • Electronic hour counter
  • Self-diagnosis and reporting anomalies of use
  • Acoustic signaling of movement and abnormal conditions
  • Double speed traction motors
  • Rubber tracks, hydraulically expandable from 787 to 1050 mm
  • Automatic outriggers levelling with electronic inclinometer
  • Outrigger pads Ø 200 mm
  • Automatic block valve on all hydraulic actuators
  • Piping DN 100 (4")
  • Rubber terminal tube DN 100 (4") 3m Length
  • Removable header pipe for piping DN 100 (4")



Work diagram
  • Max. height served: 11.20 m
  • Max. depth of casting that can be reached, including terminal rubber tube: 5 m
  • Max. length of outreach: 8 m
  • Range of action: 355°
  • Overall outrigger footprint: 3.1 x 3.26 m



Combined use with the Booster 20 Recommended
