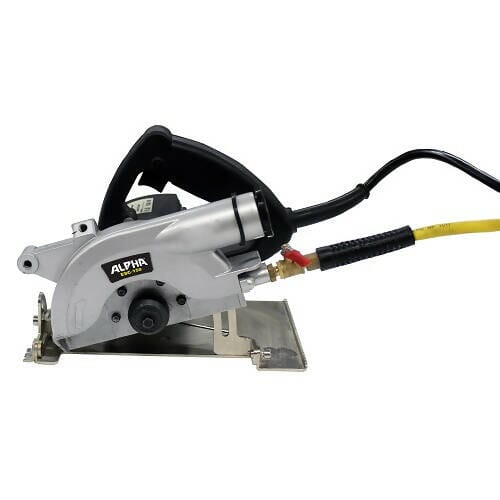

ESC-150/ESC-250 Electric Wet/Dry Stone Cutter - 6"

Alpha® introduced a new electric stone cutter, called the ESC-150, which is equipped with a powerful motor capable of cutting 1-1/4” (3cm) stone slabs in one pass. In addition, Alpha® recognized the need for a quality electric portable stone cutter that is capable of miter cutting of 1-1/4” (3cm) materials with ease, so that any stone fabricator can use it when miter cuts are required, without the time-consuming setup. Also, it is great for sink-hole cutting and groove-cutting for rodding applications.

The ESC-150 includes a kink-free water hose for improved maneuverability of the stone cutter. The flexibility of the hose helps reduce operator fatigue and improves the operation. The Alpha® ESC-150 comes with a built-in dust gate, making it dustless when connected to a HEPA vacuum. It can utilize a variety of consumables including the Alpha® Katana 6” for porcelain panels and slabs, Hot-Rod 4” for 1/4” steel rods and 1/8” fiber glass rods.

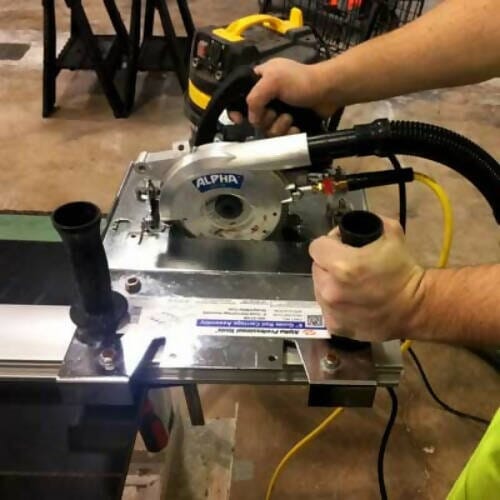

For marble applications, a Libero 5” blade is recommended, since most marble slabs are 3/4” (2cm) thick or less. Alpha® offers a carriage assembly that fits on the Alpha® Guide Rail System to support the application of making precise miter cuts for the perfect lamination.

Features & Benefits

• Powerful Motor For Use On Granite, Quartz Surfaces, Marble, Limestone, Concrete & Sintered/Porcelain Slabs
• Capable of Miter Cutting 1-1/4” (3cm) Material w/Ease
• Kink-Free Water Hose for Easy Maneuverability and Reducing Operator Fatigue
• Great For Sink-Hole Cutting, Groove Cutting/Rodding
• Comes with A Built-in Dust Gate for Dustless Cutting When Connected to A HEPA Vacuum
• Miter Cutting Kit available with ESC-150/ESC-250
• One Year Tool Warranty*

Specs

• Model: ESC-150 / ESC-250
• Rating: 110/220 Volts
• Amperage: 11.2A / 5.5A
• Power: 1200W
• No Load Speed (min-1): 10,000 RPM
• Weight: 11.30 lbs (5.12 kgs)
• Arbor: 7/8" (22.23mm)
• Cutting Disc Diameter: 6" (150mm)
• Max. Cutting Depth: 2" (50.88mm)
• Cord: 15ft (4.5m) Single Phase
• Plug Type: A (110V) / C (220V)

Equipment Included

• Side Handle
• Screw (M6x30-Left)
• Flange-3
• Water Hose Assembly (15ft / 4.5m)
• Water Quick Coupler w/ Shut-off Valve
• Carbon Brush Set
• Water Valve Assembly
• SS Flat Head Screw (M4x10)
• Ground Fault Circuit Interrupter
• End Cap
• T-Handle Wrench
• Open-End Wrench (17mm)
• Easy On-Easy Off Sleeve
• Self-stick Felt Strip Set
• Hex. Wrench (5mm)
