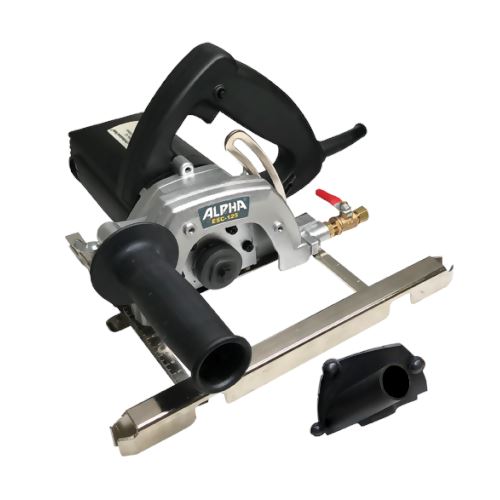

The ESC-125 is equipped with a newly designed Aluminum Manifold System that delivers sufficient water jet to cool the cutting edge as well as removes the slurry from the cutting line ahead of the stone cutter.
Alpha® has re-designed the popular AWS-125 Wet Stone Cutter, which had changed the way we cut out sink holes using a manual cutting application. The ESC-125 was created based upon the feedback from fabricators in preparation for the new silica rule change by OSHA in 2017.
OSHA is now enforcing the regulation to reduce the silica airborne particles, by cutting with water, to keep the dust down on the floor or to cut with a dust suction system with a HEPA vacuum connected. For the dry dust removal via the vacuum, we added a Dust Cover on the side of the blade guard to redirect the dust from the cutting edge into an attached vacuum. For example, when connected to the HEPA vacuum, the ESC-125 can be used dry at the jobsite to trim the edges of countertops without creating a lot of dust.
The ESC-125 is equipped with a newly designed Aluminum Manifold System that delivers sufficient water jet to cool the cutting edge as well as removes the slurry from the cutting line ahead of the stone cutter. Since water is shooting from the back of the stone cutter towards the cutting edge, ample water is provided for any size and kind of blade applicable for the ESC-125. Along with the aluminum manifold system, Alpha® upgraded the water hose to a Hybrid Kink/Memory-Free Water Hose that comes with a quick disconnect garden hose adapter. The new water feed system delivers ample volume without interruption and allows for an easy disconnect of the garden hose when needed.
The included EasyOn-EasyOff Sleeve bundles the up power cord and water hose to minimize the drag while cutting a long distance on the table. It is easy to open one end of sleeve then wrap the power cord and water hose little by little to the other end. Alpha® also changed the way to adjust the cutting depth by moving the height adjustment arm to the side of blade guard, so the adjustment is made by the Clamping Lever. The new Clamping System ensures cutting with stability, whether doing a step cut 3cm sink hole cut-out or making a groove for the reinforcement rod with much smaller diameter blades.
The improved powerful motor outputs sufficient power to cut 3cm thick granite, quartz surfaces, marble, limestone, concrete and sintered slabs using a standard 110V – 15 amp circuit.
Features & Benefits
Precision Cuts Everytime
Powerful Motor For Use On Granite, Quartz Surfaces, Marble, Limestone, Concrete and Sintered Slabs
Water-Feed Supply Eliminates The Harmful Dust Particles
Base Plate Allows Guides To Be Used in Multiple Ways
Dust Cover for HEPA Vacuum Connection
New Clamping System Ensures Cutting Stability
Included Self-Stick Felt Strips Protects The Work Surface From Scratches
