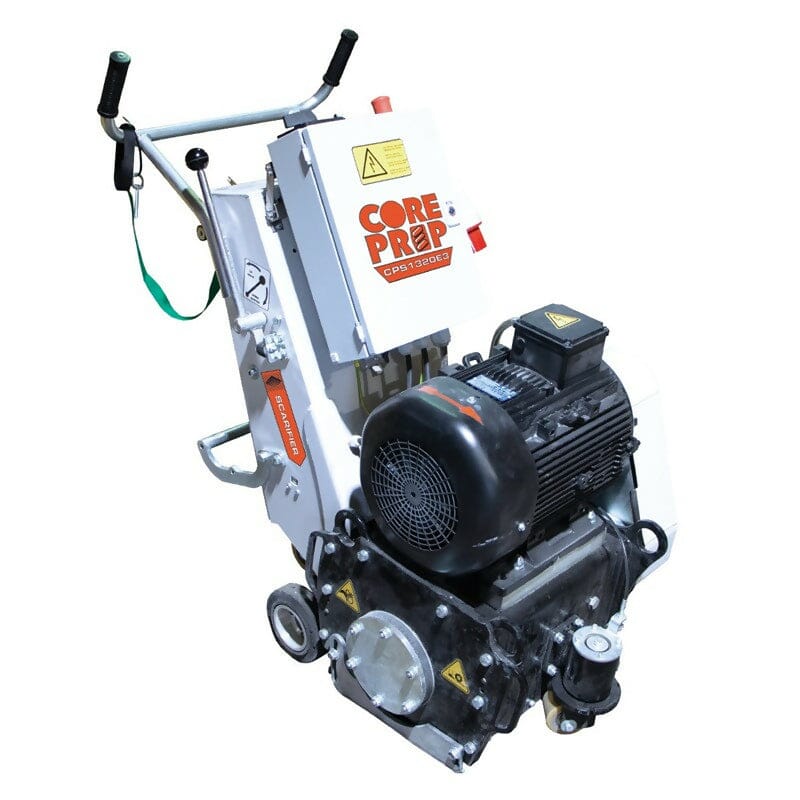

CPS1320E3 - 20HP Electric Scarifier for Concrete - Self-Propelled

Effortlessly mill hard concrete and manage depth cut of up to 1-1/8”. With classic impact or drum milling tools and a working width of 13-1/4”, this machine is ideal for processing large areas.

Features & Benefits

• Height adjustment by hand wheel
• Quick lift lever
• Belt tensioner with durable toothed belt
• Vacuum connection

Applications

• Milling cutters or diamond tools ensure problem-free removal of concrete, asphalt, coatings, and road markings.
• Bump cutting or removal of floor coatings and leveling compounds.
• Expansion joint reconstruction, flexible epoxy coatings.
• Specially designed diamond tools for use in farmyard grooving result in anti-slip surfaces every time.

Technical Specifications

• Model: CPS1320E3 Electric - Self-Propelled
• Power: 460V / 60Hz / 3PH -- 20 HP
• Milling Width: 12-1/2" with diamond / 13-1/4" with cutter drum
• Max Depth: 1"
• Vacuum Connection: 2 3/4”
• Application: Dry
• Length: 46-1/2"
• Width: 25"
• Height: 38-1/2"
• Weight: 652 lbs
