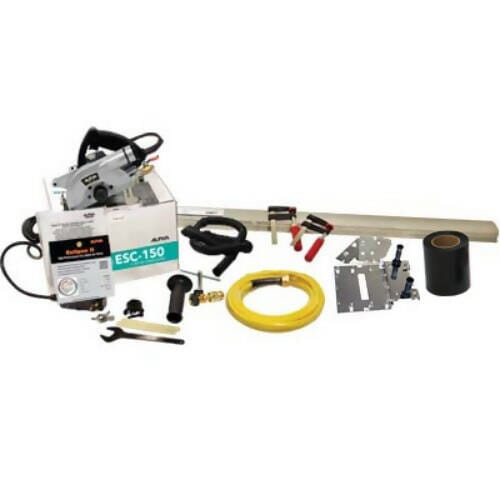

Countertop Trim Kit ESC-150 / ESC-250

Introducing the ESC-150 Countertop Trim Kit... It starts with the new ESC-150 Electric Stone Cutter, which is equipped with a powerful motor capable cutting 1-1/4” (3cm) stone slabs in one pass. It comes with a Carriage Assembly (ASC-6CSM) which fits on the 4’ Guide Rail a stable application. It also contains an Eclipse II blade (DEE006) for cutting natural and engineered stones. This system can cut up to 1-1/4” (3cm) materials with ease and is perfect for making precise cuts for trimming countertops.

Features & Benefits

• Recommended for Hard Surfaces
• Eclipse II Blade has 8mm Tall Diamond Layer for a Long Life
• Perfect for your Stone Tile Application
• High-End General Purpose Turbo Blade for Stone Fabricators
• Consistent Performance without Chipping
• Kit Contains: ESC-150 Stone Cutter, 6” Carriage Assembly, 6” Eclipse II Blade, 4’ Guide Rail and Surface Protection Tape
• One Year Tool Warranty*

Specs

• Model: 5480-4250 (ESC-150) / 5480-4252 (ESC-250)
• Rating: 110/220 Volts
• Amperage: 11.2A / 5.5A
• Power: 1200W
• No Load Speed (min-1): 10,000 RPM
• Weight: 11.30 lbs (5.12 kgs) (Tool Only)
• Arbor: 7/8" (22.23mm)
• Cutting Disc Diameter: 6" (150mm)
• Max. Cutting Depth: 2" (50.88mm)
• Cord: 15ft (4.5m) Single Phase
• Plug Type: A (110V) / C (220V)

Equipment Included

• ESC-150 / ESC-250 Wet/Dry Stone Cutter
• 6” Carriage Assembly (ASC-6CSM)
• Alpha® Eclipse II 6" (DEE006)
• Guide Rail 4' (1.2m) (ASC-GR04)
• Surface Protection Tape (BAB0650)
• ESC-150 / ESC-250 Standard Accessories
