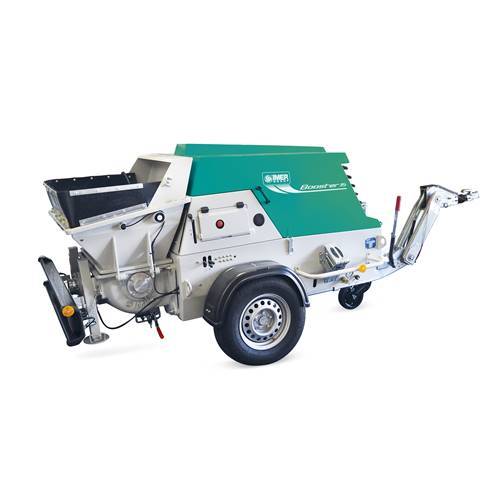

Booster 20 (formerly Booster 15) - Concrete Pump

Compact Towable High-Performance Diesel Concrete Pump

Its compact size makes the Booster able to function in limited space job site areas where no other pumps of its capability could fit. This pump was designed and built to provide up to 20 cubic yards per hour of concrete, shotcreting and high strength grouts.

Standard Features

• 3-cylinder liquid cooled diesel engine, YANMAR
• Automatic greasing system
• Concrete hopper with agitator
• Vibrating grid, 12V
• Hydraulic system with reverse
• Pumping unit with S-valve with automatic compensation of clearance and wear
• 4” Heavy Duty delivery manifold
• Control panel with electromechanical controls
• Piston head installation and extraction tool kit
• Complete w/heavy duty highway tow package
• Accessory box with grease pump
• Centralized grease ports
• 4” Cleaning balls

Technical Specs

• Diesel engine - 3-cylinder Yanmar 3TNV80F-SMIMI
• Installed power rate - 28 hp
• Pumping system - 2-cylinder with hydraulic control
• Max aggregate size - 1 in
• Flow rate (*) - 3 - 20 cu yd / hr
• Pumping pressure (*) - 1,000 psi
• Pipe outlet - Heavy Duty 4 in
• Hopper capacity - 7 cu ft
• Loading height - 42-½ in
• Length* - 161 in
• Width* - 58 in
• Height* - 60 in
• Weight - 3,100 lbs
