Polytek Development Corp  |  SKU: BC8010U5

BC-8010 Metal-Kast Urethane Resin

$78.00
Shipping calculated at checkout.

BC-8010 is a two-part, fast-setting urethane tooling and reproduction resin that simulates many of the desirable characteristics of aluminum metal. BC-8010 cures to a gray, Shore D83 plastic, is highly machinable and exhibits good heat transfer properties. It is an ideal resin for many applications, including construction of short run low temperature vacuum form tools, prototypes, models, display parts, fixturing and bulk back fill.

WARNING: This product can expose you to chemicals including Benzene, Cumene and Dibutyl Phthalate which are known to the State of California to cause cancer and/or reproductive harm. For more information, go to www.P65Warnings.ca.gov.

FOR INDUSTRIAL/PROFESSIONAL USE ONLY.

TECHNICAL SPECIFICATIONS
  • Mix Ratio by Weight: 1A:1B
  • Mix Ratio by Volume: 1A:1B
  • Shore Hardness: D83
  • Pot Life: 6-7 min.
  • Demold Time: 1.5-2 hr.
  • Cured Color: Gray
  • Mixed Viscosity: 2,250 cP
  • Specific Gravity: 1.8
  • Specific Volume: 15.4 in³/lb
  • Heat Deflection Temp.: 179°F
  • Linear Shrinkage: 0.0007 in/in
  • Tensile Strength: 4,046 psi
  • Flexural Strength: 6,650 psi
  • Compressive Strength: 9,750 psi
  • Notes: Shake or Stir Part A & Part B before use. Demold time varies with thickness of casting. The thinner the casting, the longer the demold time. Shrinkage in polyurethane resins is caused by gelling while hot then cooling.

Kit Components
BC-8010 Components

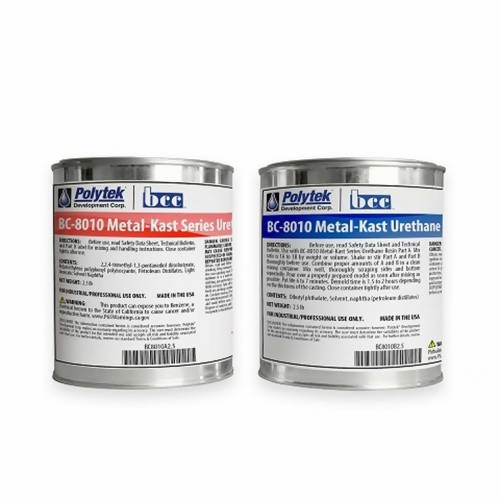

5-lb kit includes 2.5 lb of BC-8010 Part A (~1 quart)
2.5 lb of BC-8010 Part B (~1 quart)

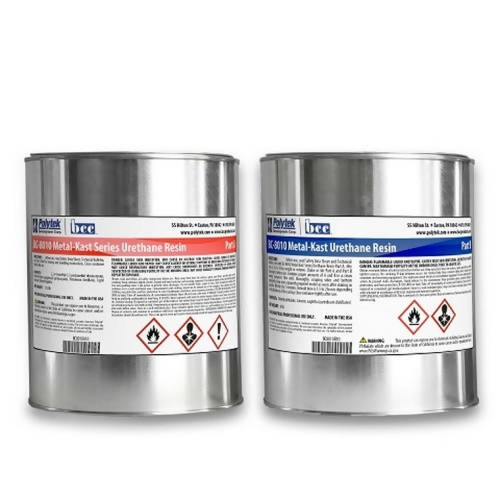

20-lb kit includes 10 lb of BC-8010 Part A (~1 gallon)
10 lb of BC-8010 Part B (~1 gallon)
