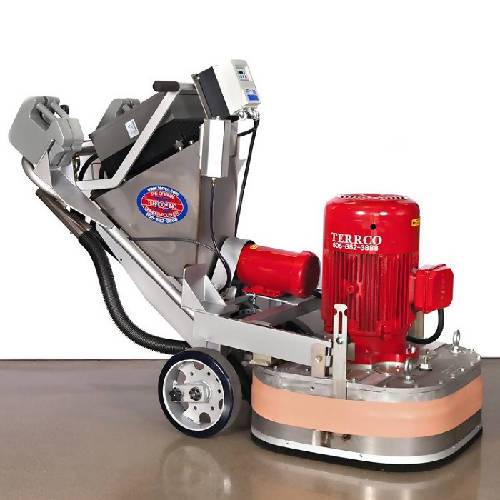

Terrco 3100-SPV Self-Propelled Concrete Polishing & Grinding Machine

• Optimal for jobs exceeding 10,000 sq. ft.
• Self Propelled
• Despite the weight and size the 3100 can be easily maneuvered by a single person
• Four 42 lb. pocket weights
• Mild or stainless steel guards
• Dry setup
• Uses plug stone shape, bolt on or speed shift system

Production Rates

• Mastic removal rate of 1000 sq. ft. per hour
• Thin-Set removal rates of 1,500 sq. ft. per hour
• Thin-Mil coatings removal rates of 750 sq. ft. per hour
• Concrete polishing rates of 2,500 sq. ft. per polishing pad per hour (depending on grit)
• Rough Terrazzo rates of 1,500 sq. ft. per day

Specs

• Horsepower/KW:25 38 HP / 18.6 KW
• Sweep of Discs: 28" (711mm)
• Abrasive Pressure: 1090 lbs (494 kg)
• Width of Machine: 29.5" (749 mm)
• Length of Machine: 72.25" (1835 mm)
• Height of Machine: 52" (1321 mm)
• Net Weight: 1452 lbs (646kg)
• Shipping Weight: 1625 lbs (737kg)
• Power Cord (4-4 - 230 Volt) / 6-4 - 460 Volt: 100 foot (30.5 m)

Electrical Options
230V, 3 Phase, Manual Drive, 60 Amp Draw, 80-100 Amp Breaker, 510 Stone Holder RPM
230V, 3 Phase, Variable Drive, 60 Amp Draw, 80-100 Amp Breaker, 385-600 Stone Holder RPM
460V, 3 Phase, Manual Drive, 30 Amp Draw, 50 Amp Breaker, 510 Stone Holder RPM
460V, 3 Phase, Variable Drive, 30 Amp Draw, 50 Amp Breaker, 385-600 Stone Holder RPM

This product will be shipped via a freight carrier using LTL shipping methods.
