Polytek Development Corp  |  SKU: BCBC5105GALKIT

PolyPoxy 5105 Laminating Epoxy

$311.08
Shipping calculated at checkout.

This product is no longer available - Check out this alternative product:

CPD 2134 - High Temperature Laminating Resin


PolyPoxy® 5105 is a clear, unfilled laminating epoxy for high-heat applications up to 300°F (for use above 150°F, post cure is required). This product is well-suited for constructing vacuum form tools, lay-up and compression molds, RTM and RIM molds, and matched dies. For compatible surface coat epoxy options, view our Surface Coat product line.

PolyPoxy® 5105 has a pot life of 55 minutes, a demold time of 24 hours, and cures to a Shore D90 hardness.

FOR INDUSTRIAL/PROFESSIONAL USE ONLY.

TECHNICAL SPECIFICATIONS
  • Mix Ratio by Weight: 100A:17B
  • Mix Ratio by Volume: 100A:20B
  • Shore Hardness: D90
  • Pot Life: 55 min.
  • Demold Time: 24 hr.
  • Cured Color: Clear
  • Mixed Viscosity: 2,000 cP
  • Specific Gravity: 1.15
  • Specific Volume: 24.1 in³/lb
  • Heat Deflection Temp.: 293°F
  • Notes: BEFORE USE: Thoroughly read Safety Data Sheets, Technical Bulletin, and product labels. WARNING: THE EPOXY CURE REACTION IS VERY EXOTHERMIC - IMPROPER USE OF LAMINATING EPOXY CAN CAUSE WARPING AND EVEN A FIRE.

Kit Components
PolyPoxy® 5105 Components
9.36-lb kit includes 8 lb of PolyPoxy 5105 Resin (~1 gallon)
1.36 lb of PolyPoxy 5105 Hardener (~1 quart)
48-lb kit includes 41 lb of PolyPoxy 5105 Resin (~5 gallons)
7 lb of PolyPoxy 5105  Hardener (~1 gallon)

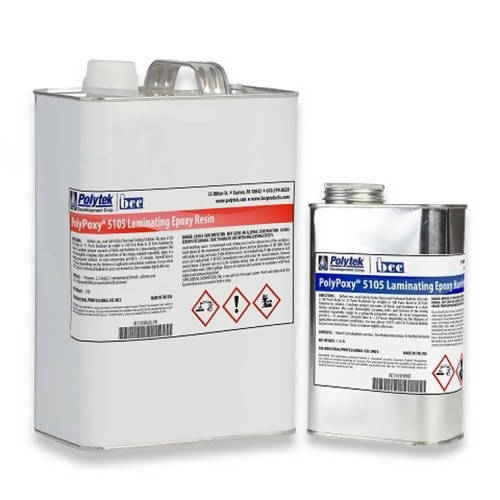

PolyPoxy 5105 Laminating Epoxy Polytek Development Corp 9.36-lb kit
