Polytek Development Corp  |  SKU: FS20U16

PlatSil FS-20 Silicone Rubber - Fast-Setting

$329.00
Shipping calculated at checkout.

PlatSil® FS-20 (Fast-Setting) Silicone Rubber is a two-part, platinum-catalyzed, liquid silicone system that cures (RTV) to a milky white, Shore OO66/A20 rubber. This product offers a simple 1A:1B mix ratio (by weight or volume), a fast demold time of ~25 minutes, and a long pour time (~8 minutes) relative to its cure speed. This allows for fast turn-around of molds and parts with sufficient time to mix and pour. Heat can be used to further accelerate the cure.

This is a pourable rubber, but it can be easily thickened with PlatThix Liquid Thickener or Fumed Silica for brush-on application.

FOR INDUSTRIAL/PROFESSIONAL USE ONLY.

TECHNICAL SPECIFICATIONS
  • Mix Ratio by Volume: 1A:1B
  • Mix Ratio by Weight: 1A:1B
  • Shore Hardness: A20
  • Pour Time: 8 min.
  • Demold Time: 25 min.
  • Cured Color: Milky White
  • Mixed Viscosity: 3,800 cP
  • Specific Volume: 24.9 in³/lb
  • Specific Gravity: 1.11
  • Elongation: 626 %
  • Tensile Strength: 467 psi
  • Die B Tear Strength: 148.2 pli
  • Die T Tear Strength: 52.8 pli
  • Cure Inhibition: Contamination from sulfur (e.g., sulfur-based clay), amines, tin compounds, cured polyester resin, some paints and some silicone rubbers may inhibit surface cure of platinum-cured rubbers.



Kit Components
PlatSil® FS-20 Components

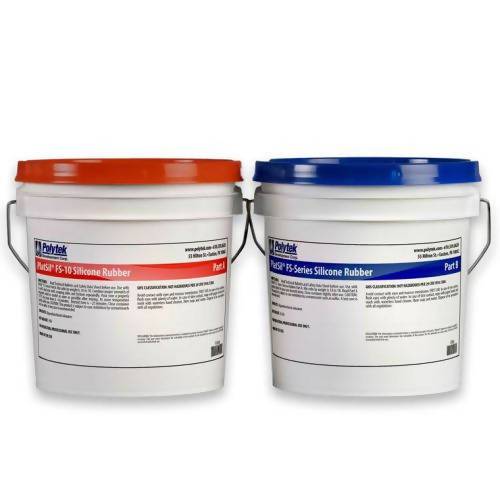

16-lb kit includes: 8 lb of PlatSil® FS-20 Part A (~1 gallon)
8 lb of PlatSil® FS-20 Part B (~1 gallon)

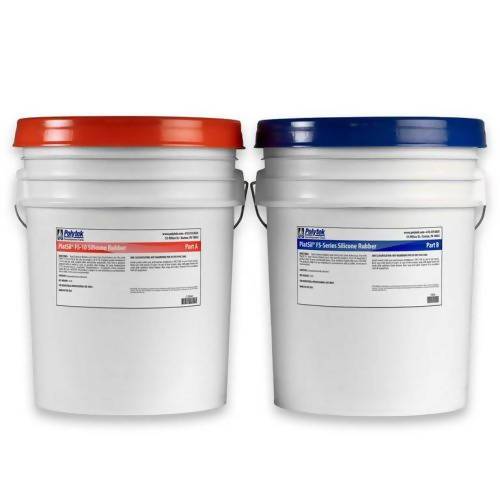

80-lb kit includes: 40 lb of PlatSil® FS-20 Part A (~5 gallons)
40 lb of PlatSil® FS-20 Part B (~5 gallons)
