Engrave-A-Crete  |  SKU: MGX-72

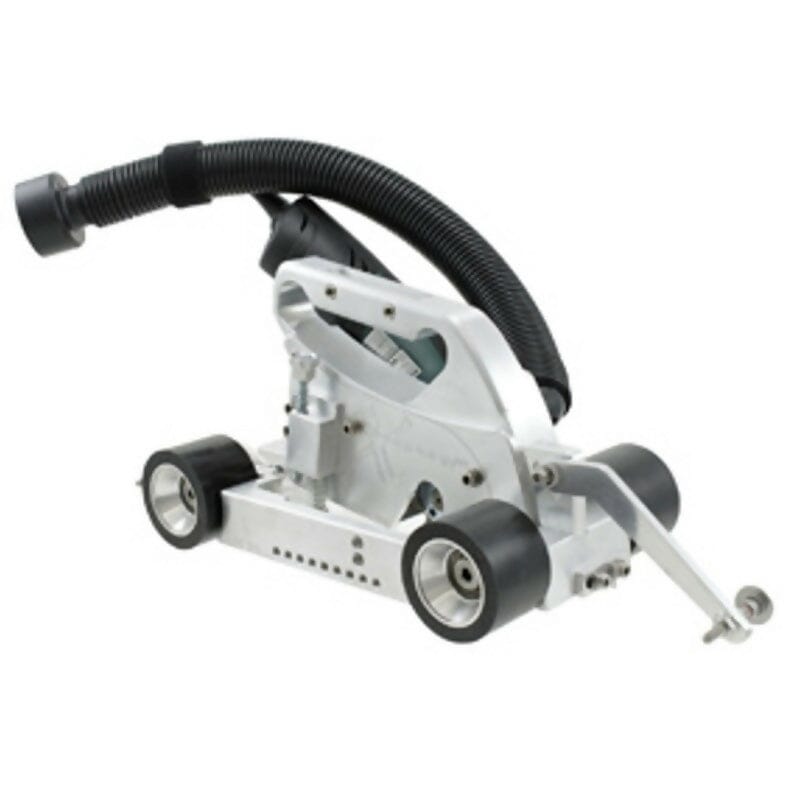

Mongoose X Cutting Unit

Get ready to experience the ultimate decorative concrete cutting machine with our 3.1" diameter blade and premium .125" USA diamond blade included! Designed specifically for engraving concrete, this powerful tool effortlessly cuts through any concrete surface.

$2,495.00
Shipping calculated at checkout.

Our high-performance decorative concrete cutting machine! With a 3.1" diameter blade specially designed for engraving concrete, this tool cuts through concrete with ease. Includes .125" Premium USA Diamond Blade.

Note: Concrete engraver and blade only. Upright handle optional. Comes installed with front and rear pointers for aligning cuts. One-year warranty on all parts - Lifetime Warranty on all aluminum parts.

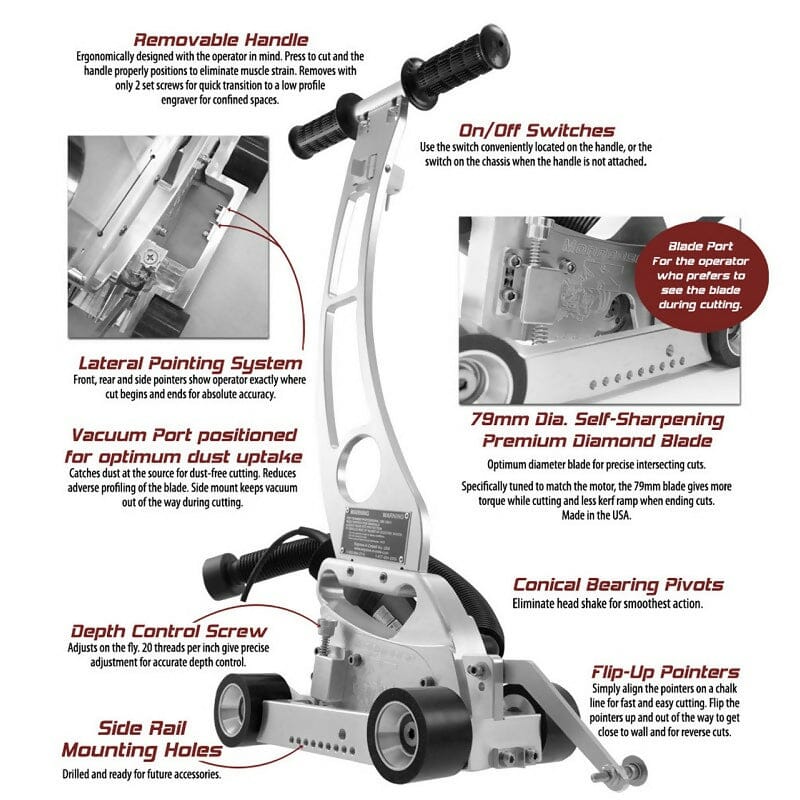

Features & Benefits

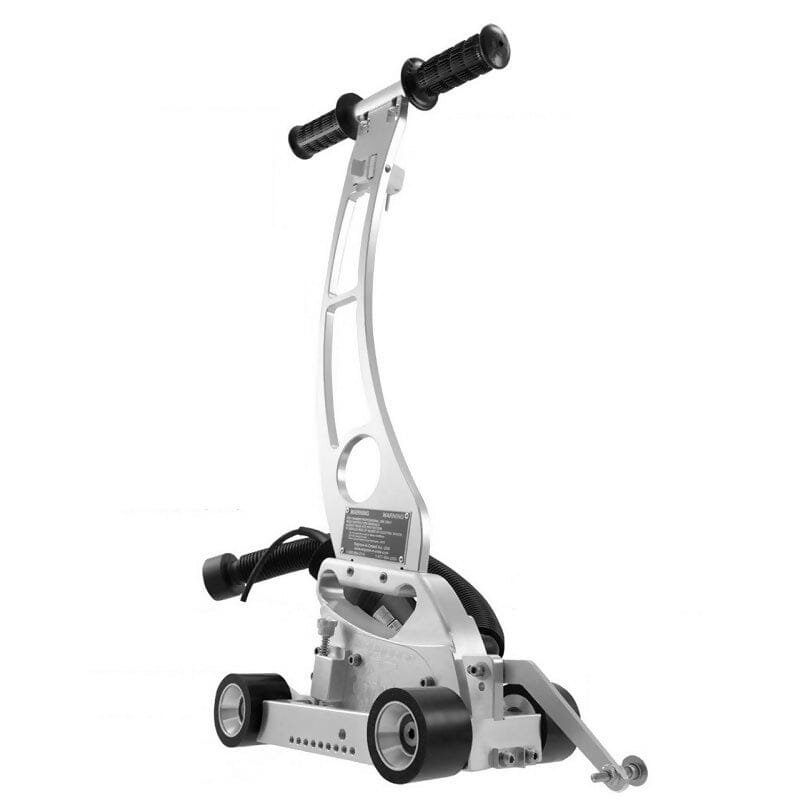

  • Removable Handle - Ergonomically designed with the operator in mind. Eliminates muscle strain. Handle removes with only 2 set screws for rapid transition to a low profile engraver for confined spaces. Handle sold separately.
  • Ease of Use Spring-Loaded Cutting Head -The spring-loaded cutting head gives the operator full control of starts and stops. Simply push down to cut, then release, and the blade pops out of the cut. On-the-fly adjustments with just the turn of a screw.
  • Vacuum Port Positioned for Optimum Dust Uptake - Catches dust at the source for dust free cutting. Reduces adverse profiling of the blade. Side mount keeps vacuum out of the way during cutting.
  • Powerful Motor - The upgraded motor has up to 50% more torque and up to 20% higher overload capacity for quicker material removal and longer service life. Automatic Motor Safety Clutch increases operator and machine safety by minimizing sudden kickback during a blade jam.
  • Precision Machined - INTELLIGENT ENGINEERING: Axle holes are tapped (threaded) at the same time the Mongoose X is machined, resulting in a rigid, accurate and smooth rolling chassis. Made in the USA from solid blocks of 6061-T6 billet aluminum on state-of-the-art milling and turning centers at the Engrave-A-Crete machining and manufacturing facility. So perfectly crafted that it requires no polishing---but it is.
  • Blade Port - For the operator who prefers to see the blade during cutting.
  • Premium Diamond Blade - Specifically tuned to match the motor, the 79mm diameter blade gives increased torque while cutting and less kerf-ramp when ending cuts. Maximum cutting depth is 1/4". Made in the USA.
  • Blade Options - 3.1" x .090 | 3.1" x .125" | 3.1" x .250" | 3.1" x .375"
  • Lightweight - Easily moves from one position to another in the design. Lessens operator fatigue. Easy to transport and store. Total weight is 15.82lbs
  • Wide High Traction Wheels - Top of the line, Hy-Grade urethane wheels increase stability and traction
  • Side Rail Mounting Holes - Drilled and ready for future accessories.

Capabilities

  • Straight Lines
  • Tile Designs
  • Slate / Block
  • Random Block
  • Random Ashlar Slate
  • Running Bond Block
  • Geometric Designs
  • Perfect Circles – using center pivot
  • Perfect Arcs – using center pivot
  • Squares
  • Triangles
  • Rectangles
  • Polygons

Cuts 4" from wall on side cuts and 4.5" from wall on front cuts

Dimensions of tool are 13" x 7.75" x 9.5"
