Scanmaskin 32 World Series Concrete Grinder

$25,900.00
SKU 583205

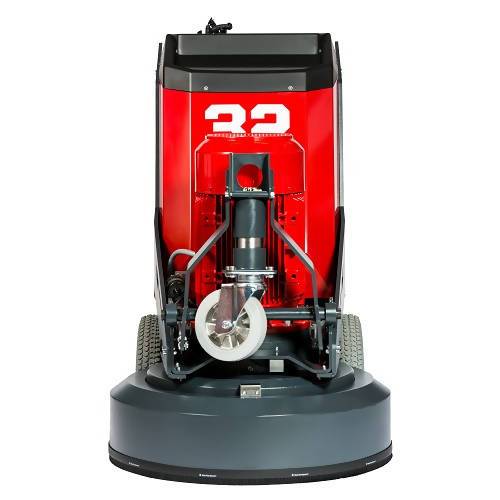

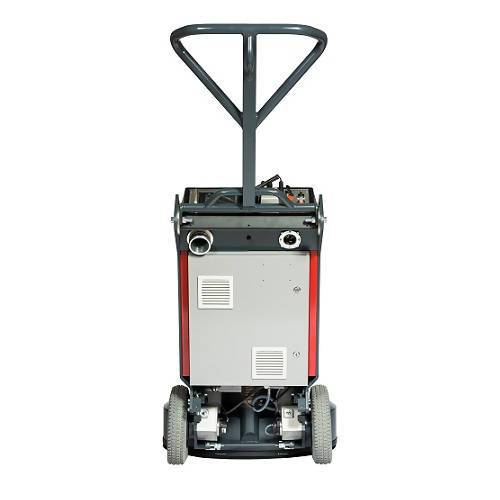

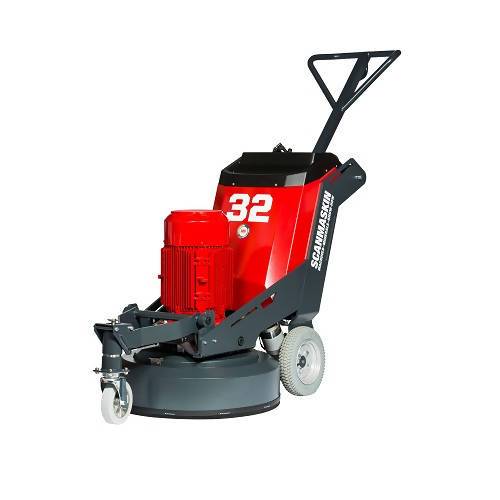

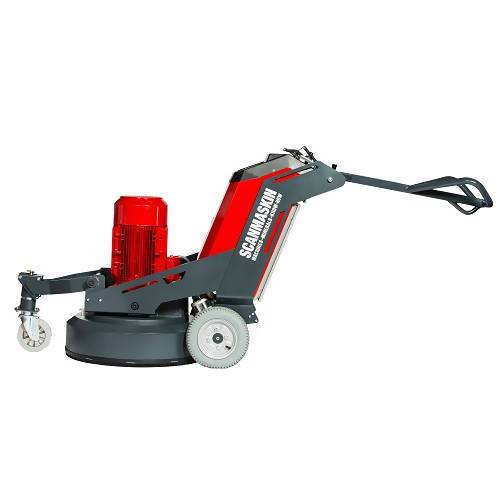

The Scanmaskin 32 World Series is the largest grinding machine in the World Series line with its 32 inch (800mm) large grinding head. The Scanmaskin 32 World Series has a fully casted machine house, giving long durability and dust-free operation. The construction of the machine is designed to facilitate service as you only need to loosen three screws to gain access to the entire machine house. The Scanmaskin 32 World Series machine is equipped with a new tool head which in turn gives a more efficient grinding result.

The wheels on the Scanmaskin 32 World Series are 14,5 inch (370 mm) and can be quickly disengaged for manual operation. The wheels are also adjustable both front and rear, allowing the operator to increase or decrease the grinding pressure. The Scanmaskin 32 World Series is available in a basic version and a radio control and smart display version. The smart display assists throughout the grinding process by providing the operator real-time feedback on tooling wear and operational speed. The radio controls allow the operator to make accurate adjustments while maintaining consistent production.

All of these unique advantages make the Scanmaskin 32 World Series Grinder one of the fastest and most efficient grinding machines on the market, maximizing overall production hours and minimizing maintenance time.



  • Voltage: 200-240 V 3~/380-480 V~
    Motor Power: 11kW / 15kW (15 hp / 20 hp)
    Current: 50 Amp / 32 Amp
    Frequency: 50-60 Hz
    Grinding Disc Speed: 200-825 rpm
    Grinding Disc: 3 x 280 mm / 3 x 11"
    Grinding Width: 785mm / 32"
    Weight: 610 kg / 1345 lbs
    Water Tank: 20 L / 5.3 US gal
    Other: CE Marking

  •





  • This product will be shipped via a freight carrier using LTL shipping methods.
